2025-11-15
Flow resistance
Original records cover deionized-water flow-resistance testing in the plug-to-socket direction. Pressure-loss curves were generated across a 0-1 bar range at 1 L/min intervals.
Back to products
UQD Series
UQD Series Quick Disconnects
Compact liquid cooling quick couplings for data center, supercomputing, cold plate, server cooling loops, and prototypes.
Series specifications
- Nominal diameters
- DN03 / DN05 / DN07 / DN10
- Body material
- 304 / 316L stainless steel
- Seal material
- EPDM standard; FVMQ low-temperature option
- Working pressure
- 6.9 bar
- Burst pressure
- 20 bar
- Temperature range
- -20°C to 150°C
Compatible fluids
Deionized water, Purified water, Ethylene glycol, Propylene glycol.
UQD Testing Evidence
Source records reviewed for UQD02 / UQD04 / UQD06 / UQD08.
2025-11-17
Burst pressure
Original burst-pressure records cover three samples per model and show minimum measured values above each stated requirement.
2026-04-13
Mechanical life
Original mechanical-life records cover 10 samples per model. All covered models reached at least 5,000 mating cycles and passed pressure leakage checks after testing.
2026-04-27
Insertion force
Original insertion-force records cover three samples per model and show maximum measured values within each model's specified mating-force limit.
Burst pressure
| Model | Minimum | Requirement | Margin | Result |
|---|---|---|---|---|
| UQD02 | 2730 psi | >= 870 psi / 60 bar | 3.14x | Pass |
| UQD04 | 1590 psi | >= 696 psi / 48 bar | 2.28x | Pass |
| UQD06 | 1452 psi | >= 300 psi / 20.7 bar | 4.84x | Pass |
| UQD08 | 583 psi | >= 300 psi / 20.7 bar | 1.94x | Pass |
Insertion force
| Model | Maximum | Requirement | Result |
|---|---|---|---|
| UQD02 | 59.2 N | <= 60 N | Pass |
| UQD04 | 64.4 N | <= 65 N | Pass |
| UQD06 | 83.5 N | <= 90 N | Pass |
| UQD08 | 94.5 N | <= 135 N | Pass |
16 original source PDFs reviewed: four UQD models times four test categories.
Public-facing values are shown under Panduola Tech and standardized for overseas B2B communication.
Model Reference
Available model images
Use these as a starting point. Final dimensions, drawings, and replacement compatibility should be confirmed before ordering.
UQD02F-S021R
DN03
Female / socket side
304 / 316L stainless steel

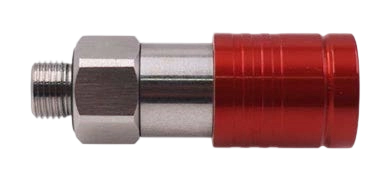

UQD02F-S511R
DN03
Female / socket side
304 / 316L stainless steel

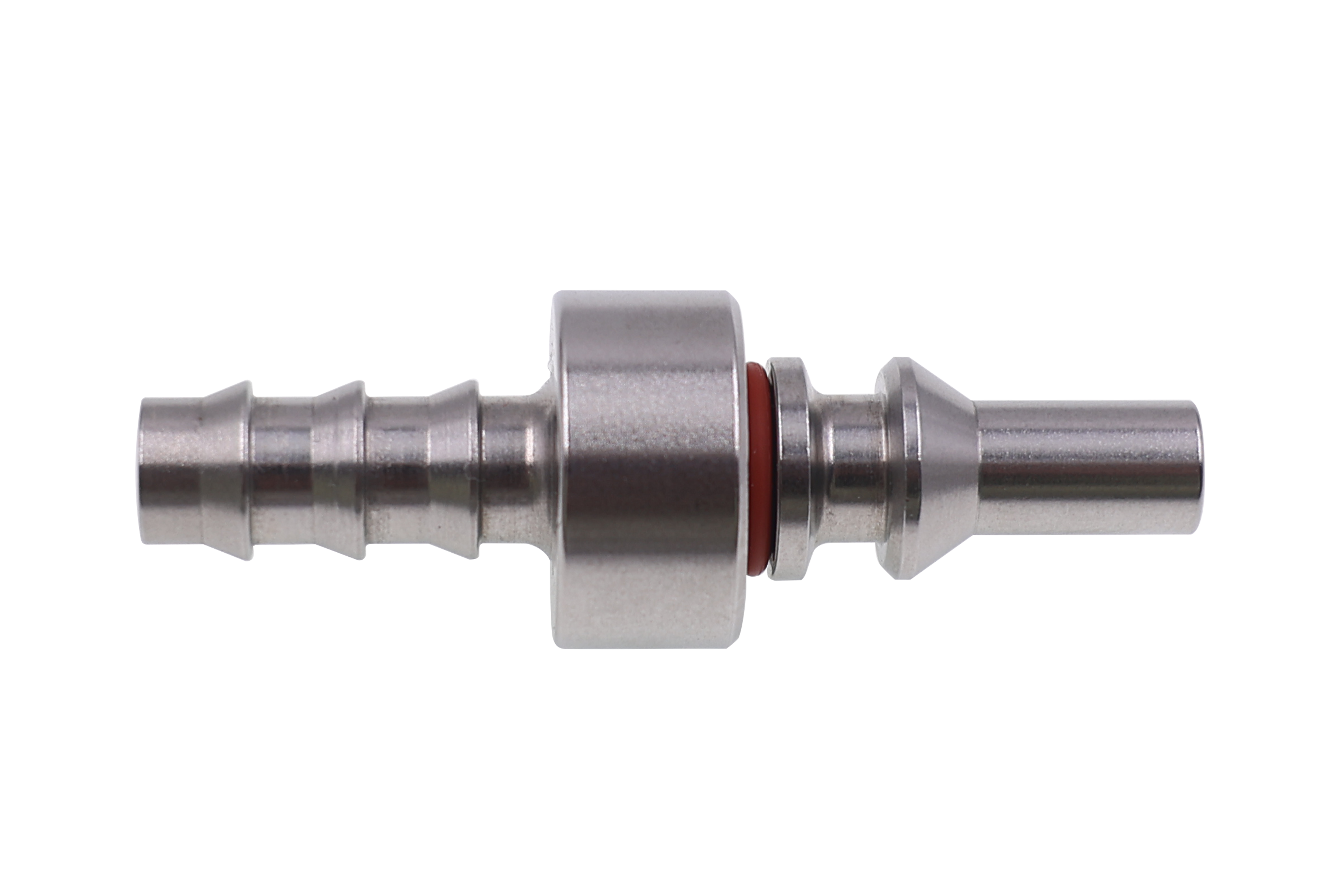

UQD02M-S021R
DN03
Male / plug side
304 / 316L stainless steel

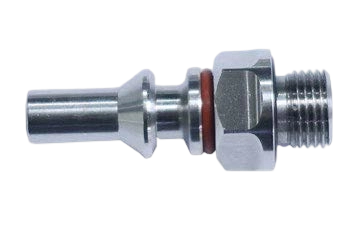

UQD02M-S511R
DN03
Male / plug side
304 / 316L stainless steel

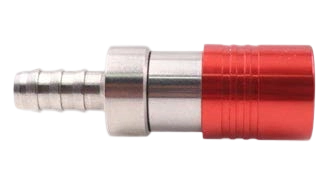

UQD04F-S041R
DN05
Female / socket side
304 / 316L stainless steel

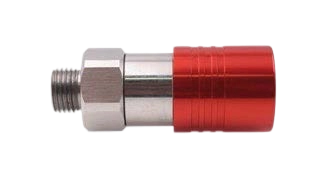

UQD04F-S521R
DN05
Female / socket side
304 / 316L stainless steel

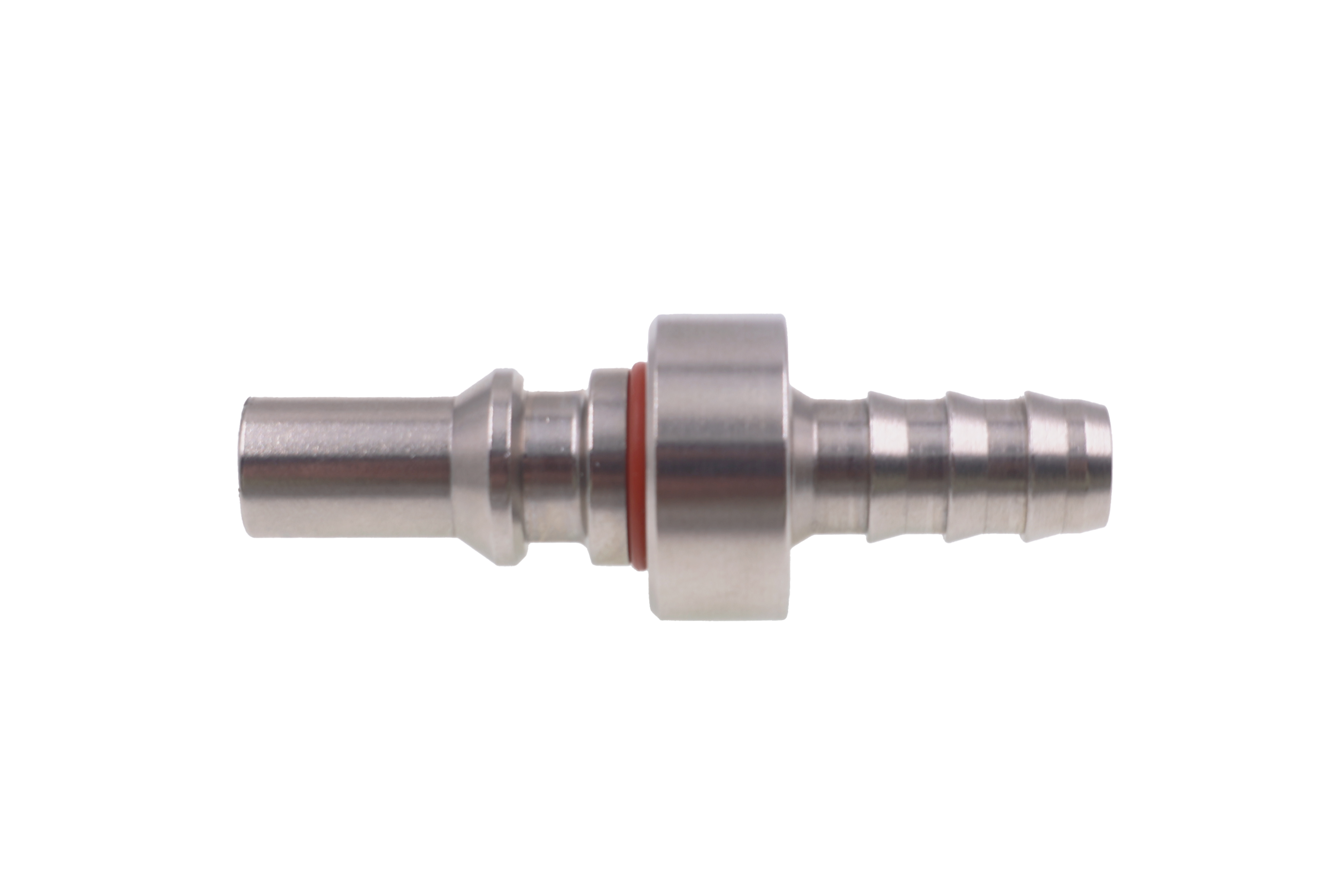

UQD04M-S041R
DN05
Male / plug side
304 / 316L stainless steel

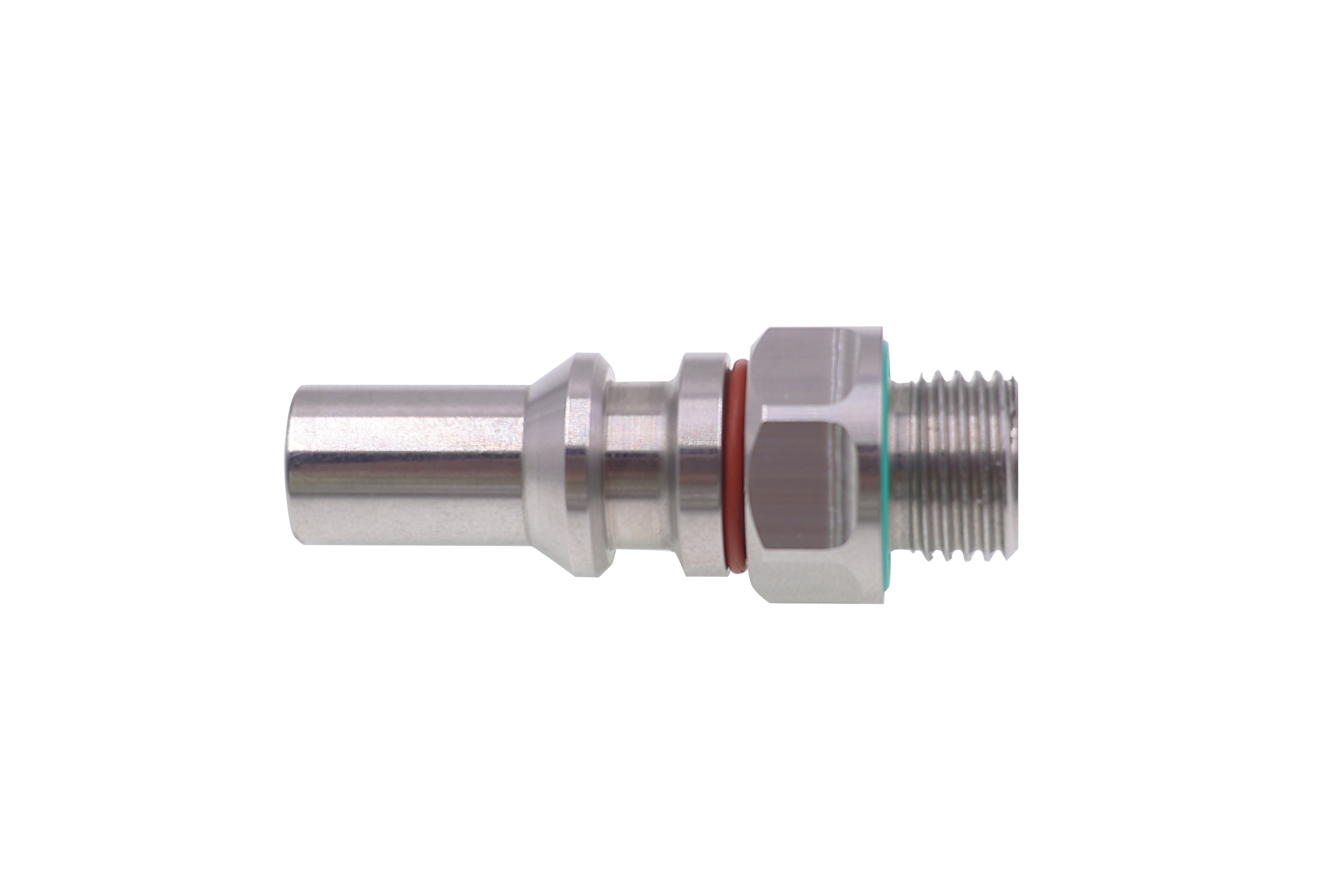

UQD04M-S521R
DN05
Male / plug side
304 / 316L stainless steel

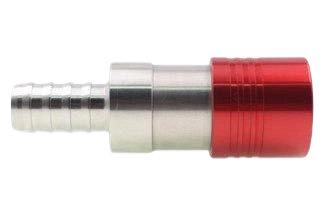

UQD06F-S061R
DN07
Female / socket side
304 / 316L stainless steel

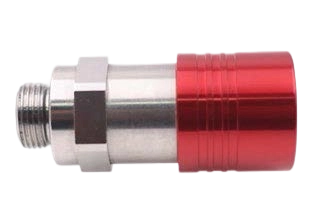

UQD06F-S541R
DN07
Female / socket side
304 / 316L stainless steel

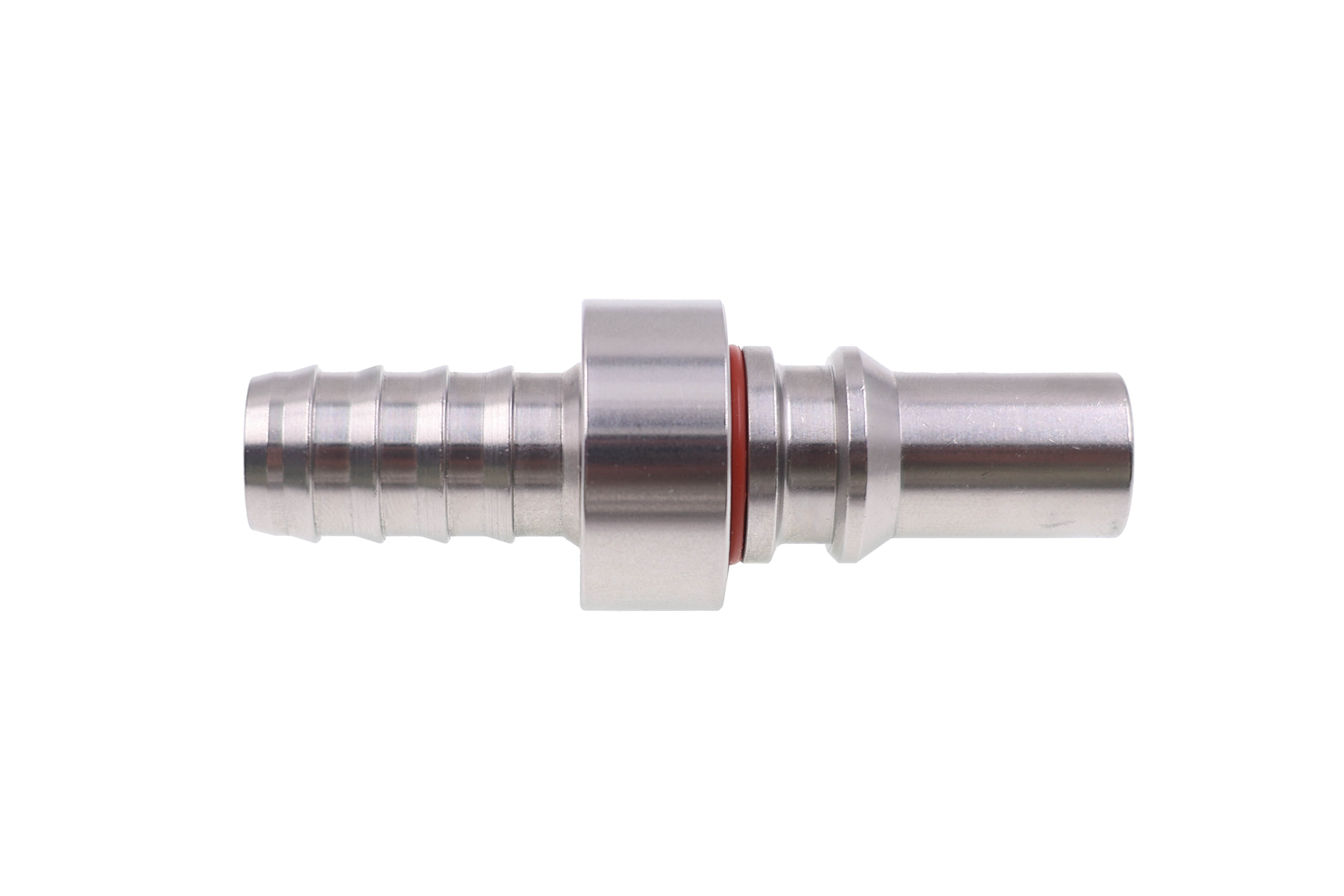

UQD06M-S061R
DN07
Male / plug side
304 / 316L stainless steel

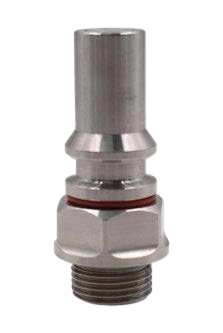

UQD06M-S541R
DN07
Male / plug side
304 / 316L stainless steel

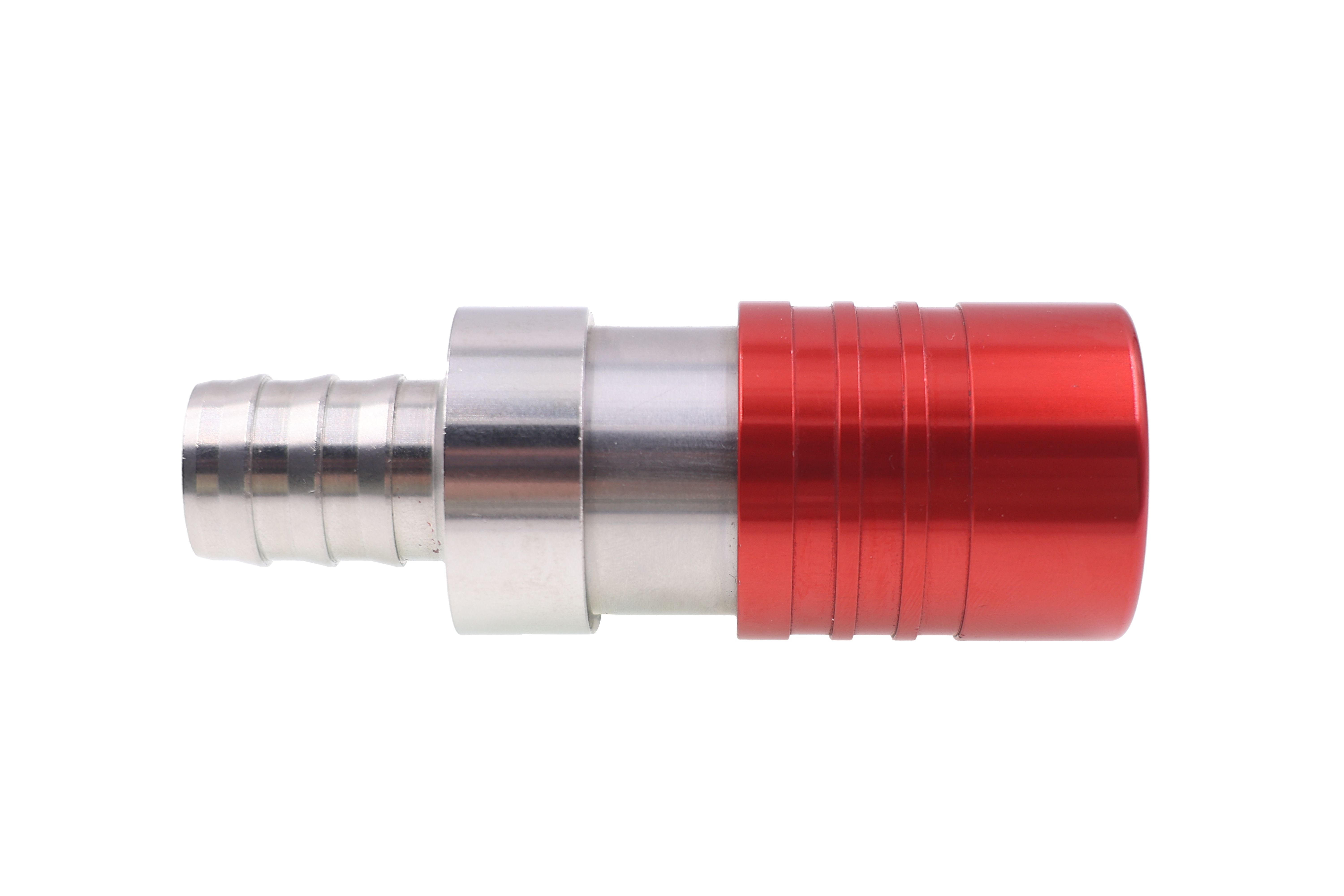

UQD08F-S081R
DN10
Female / socket side
304 / 316L stainless steel

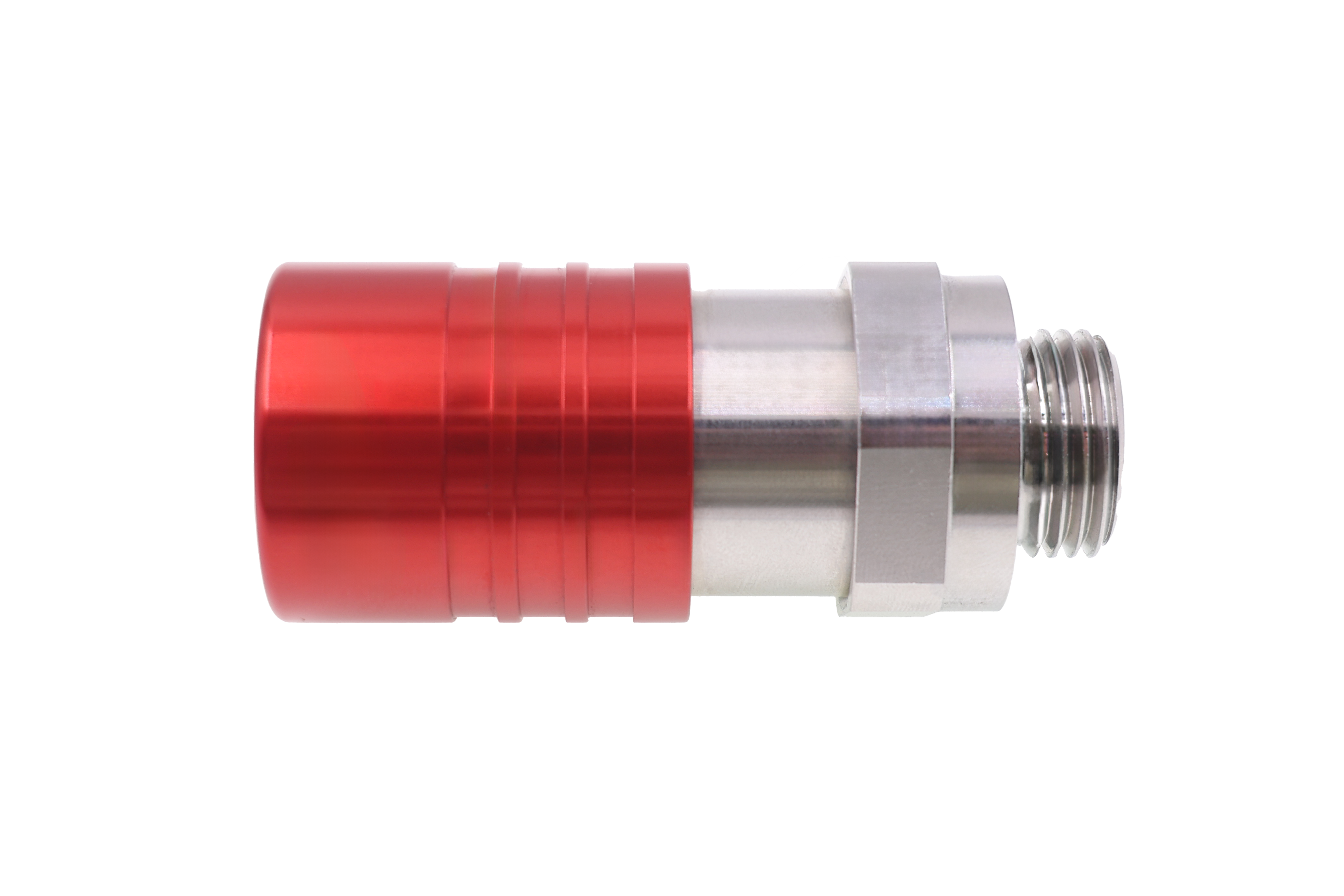

UQD08F-S551R
DN10
Female / socket side
304 / 316L stainless steel

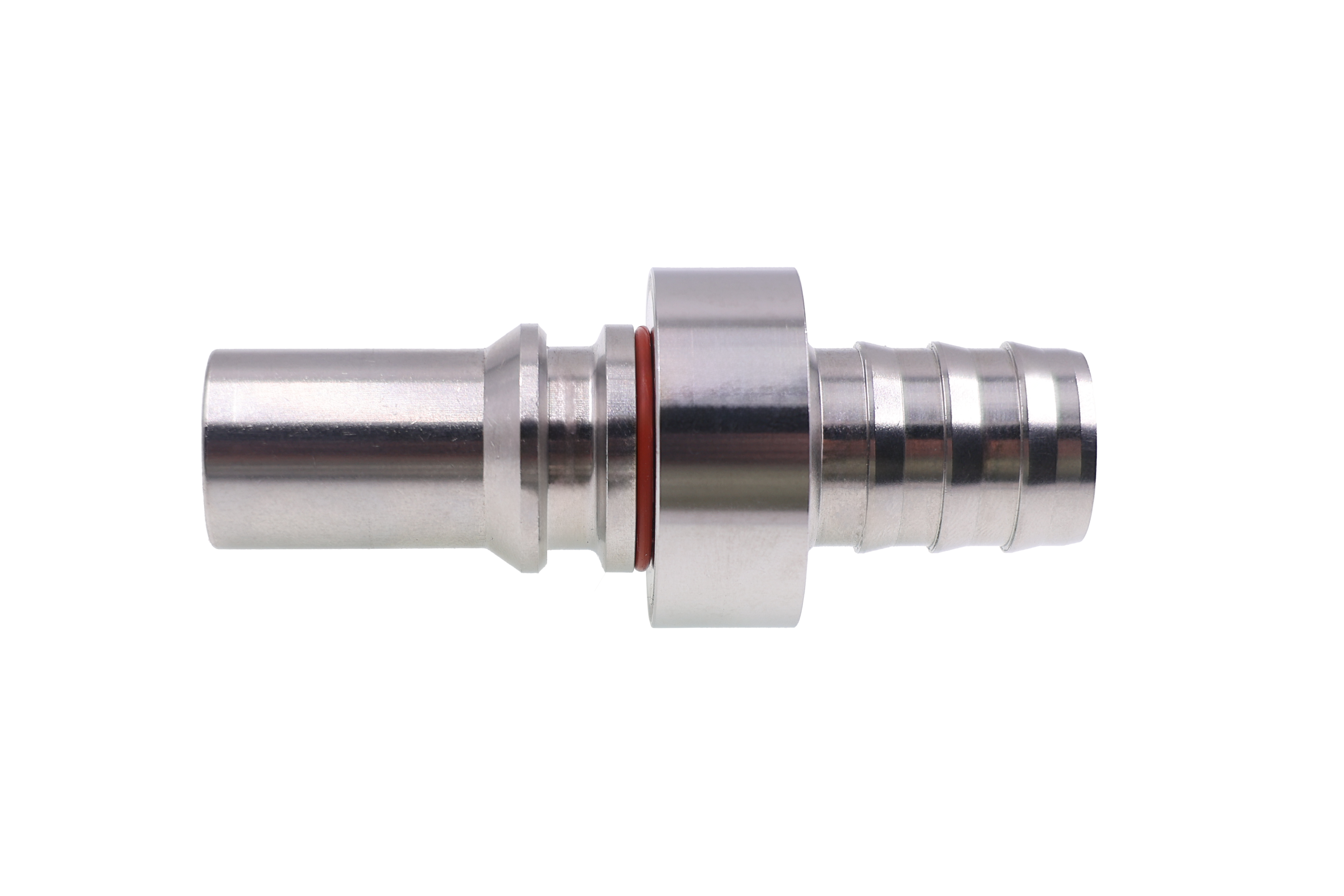

UQD08M-S081R
DN10
Male / plug side
304 / 316L stainless steel

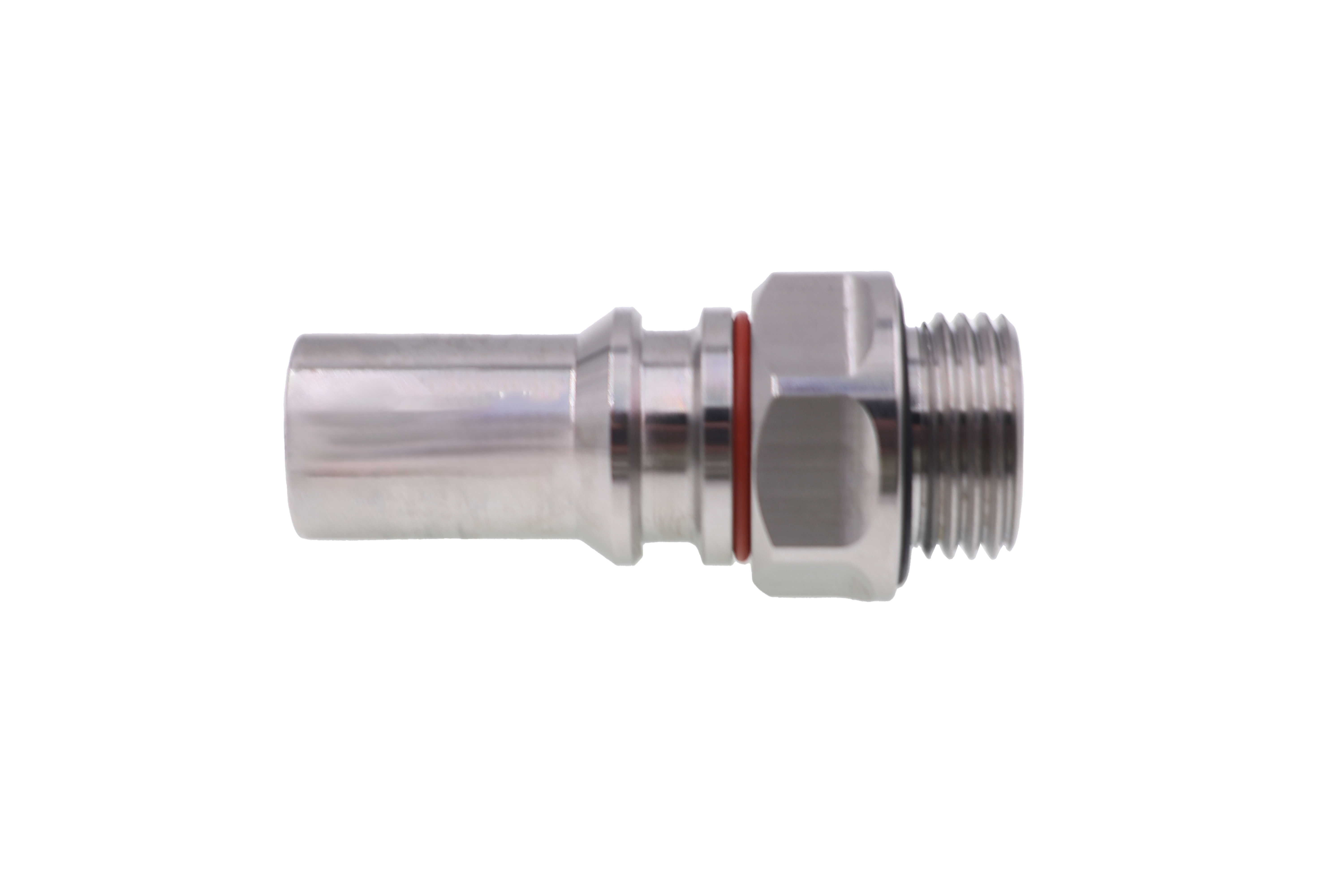

UQD08M-S551R
DN10
Male / plug side
304 / 316L stainless steel
