QDC05F-A021N
DN05
Female / socket side
AL6061 aluminum alloy
Back to products
QDC Series
QDC Series Quick Disconnects
Liquid cooling quick couplings for power electronics, radar equipment, EV charging, and general cooling systems.
Series specifications
- Nominal diameters
- DN05 / DN09 / DN12 / DN16
- Body material
- 304 / 316L stainless steel / AL6061
- Seal material
- EPDM standard; FVMQ low-temperature option
- Working pressure
- 10 bar
- Burst pressure
- 20 bar
- Temperature range
- -20°C to 150°C
Compatible fluids
Deionized water, Purified water, Ethylene glycol, Propylene glycol.
Model Reference
Available model images
Use these as a starting point. Final dimensions, drawings, and replacement compatibility should be confirmed before ordering.

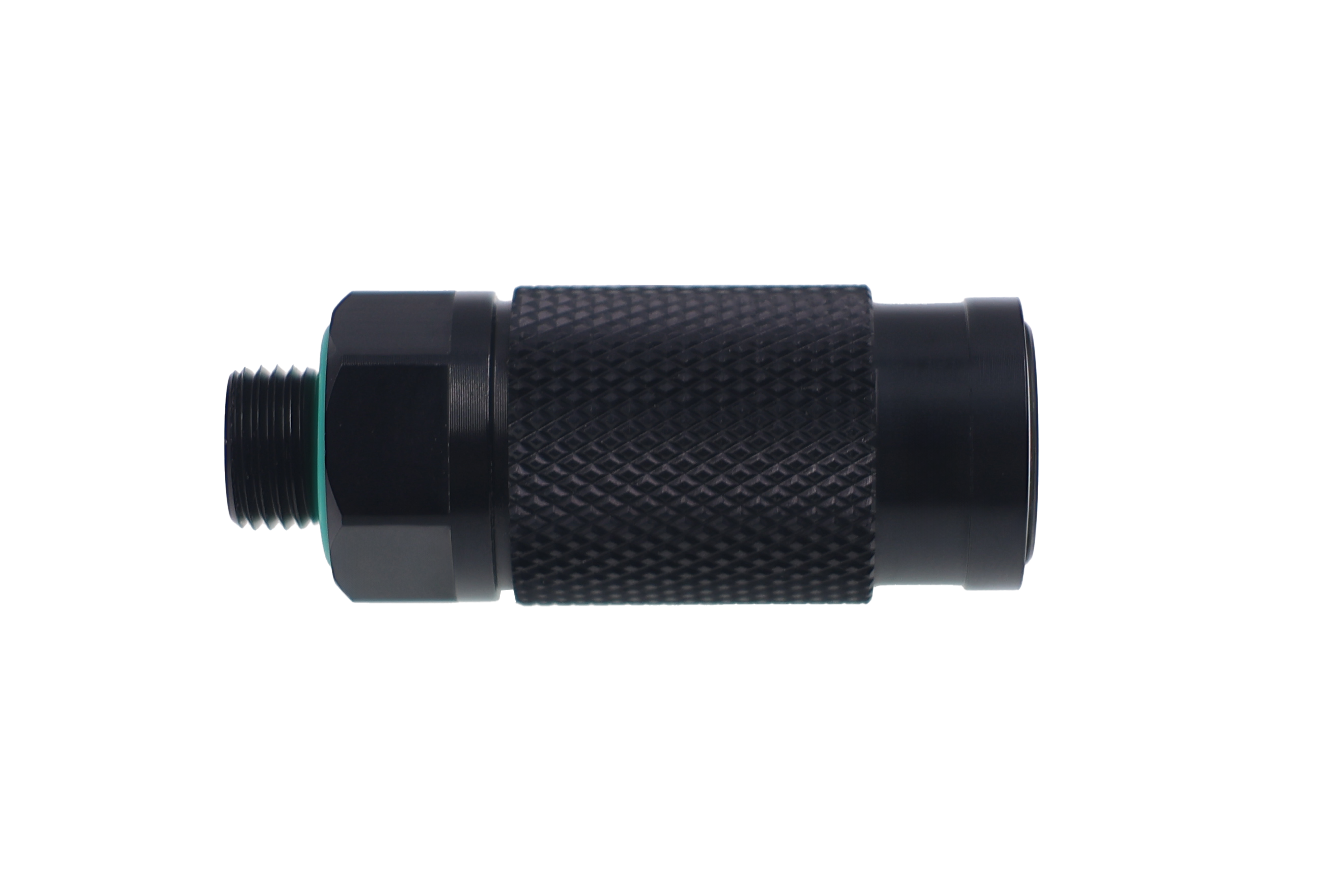

QDC05F-A511N
DN05
Female / socket side
AL6061 aluminum alloy

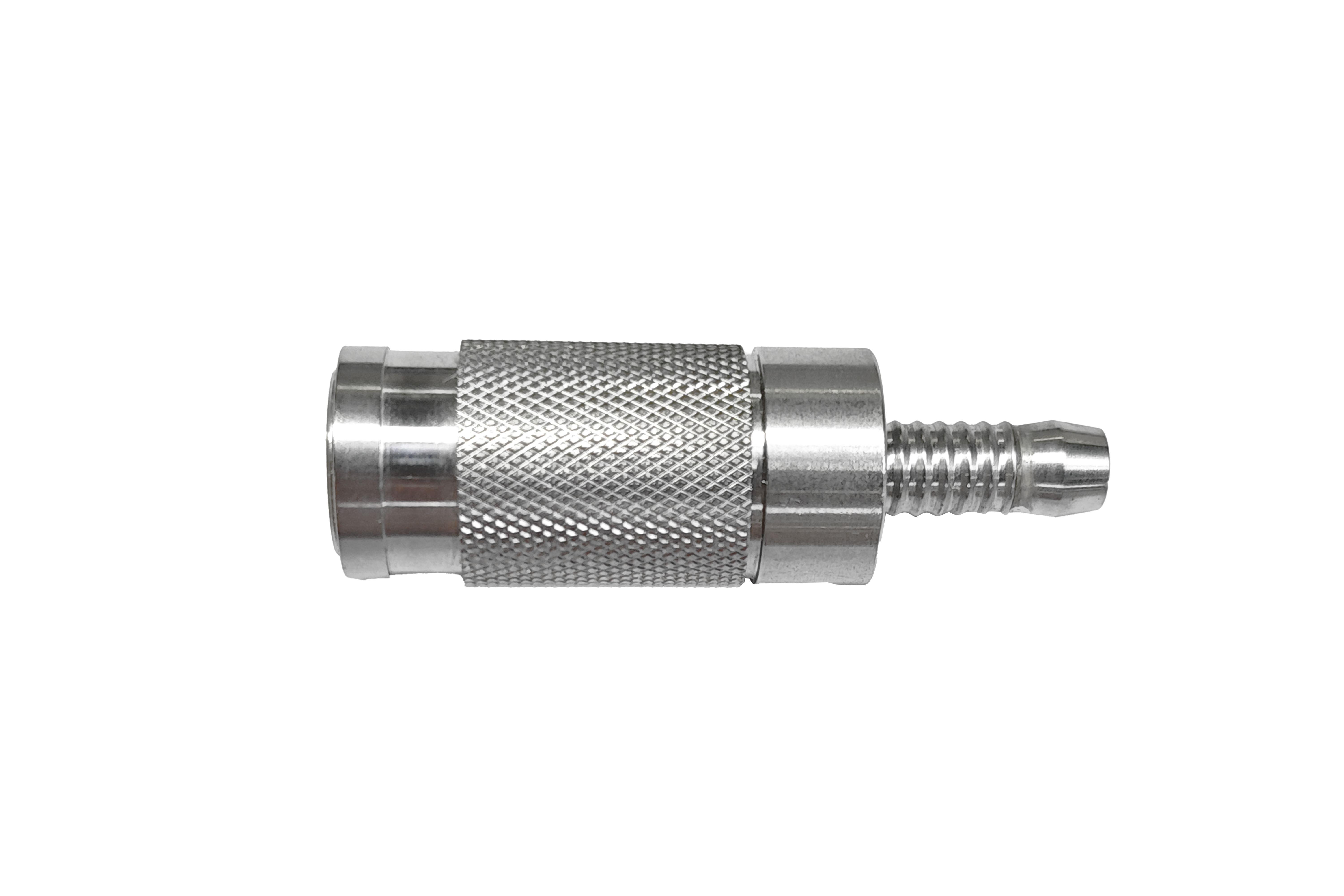

QDC05F-S021N
DN05
Female / socket side
304 / 316L stainless steel

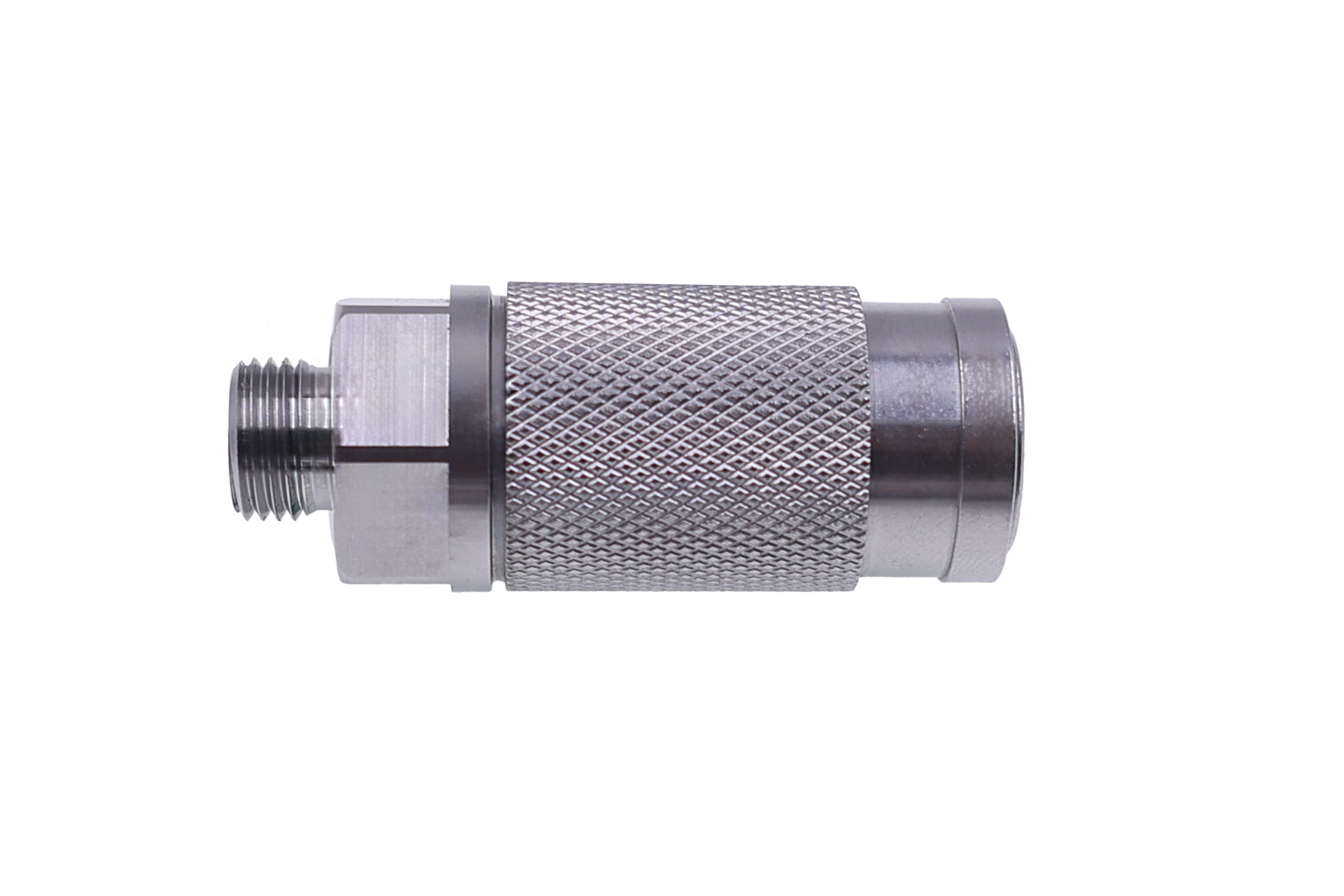

QDC05F-S511N
DN05
Female / socket side
304 / 316L stainless steel

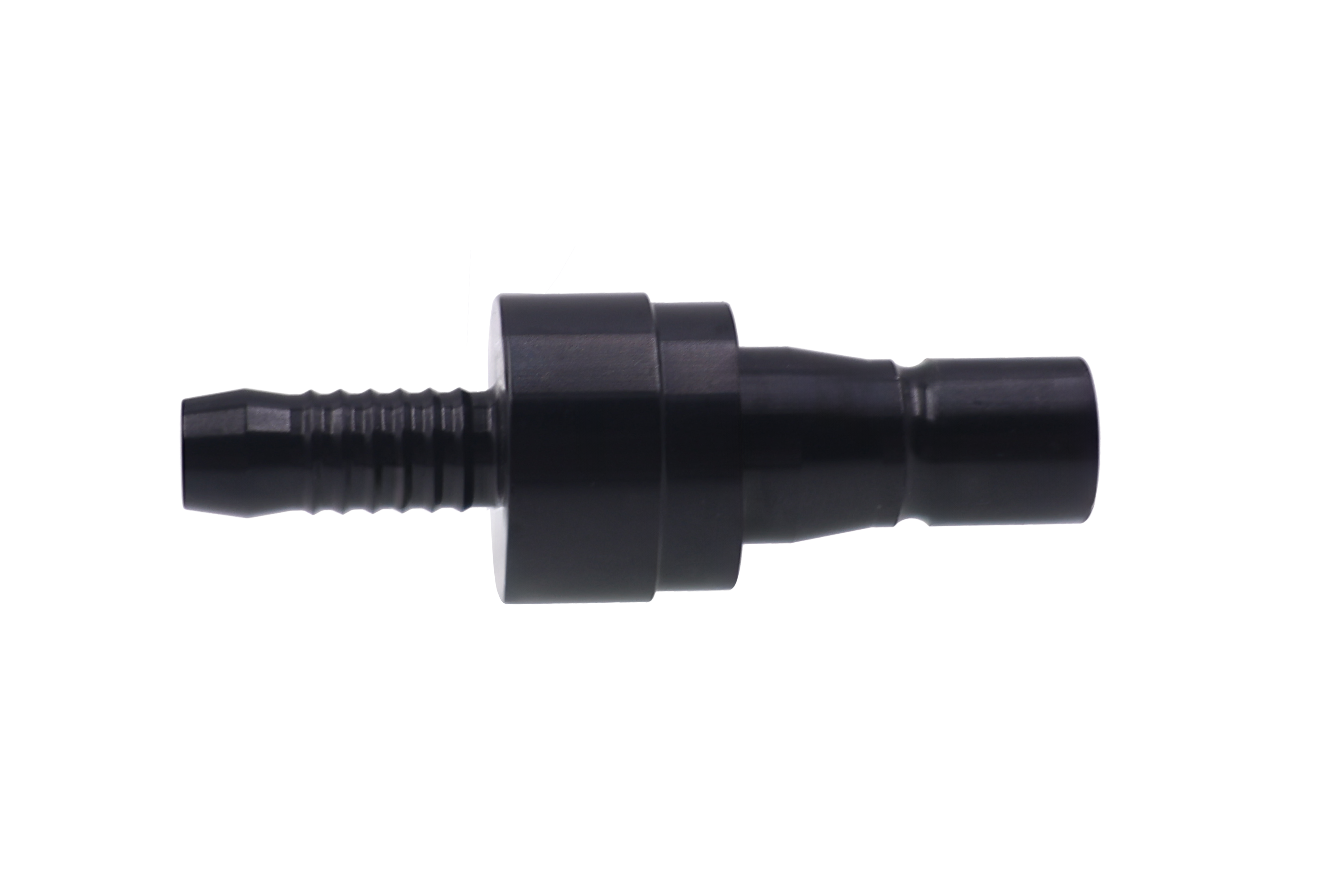

QDC05M-A021N
DN05
Male / plug side
AL6061 aluminum alloy

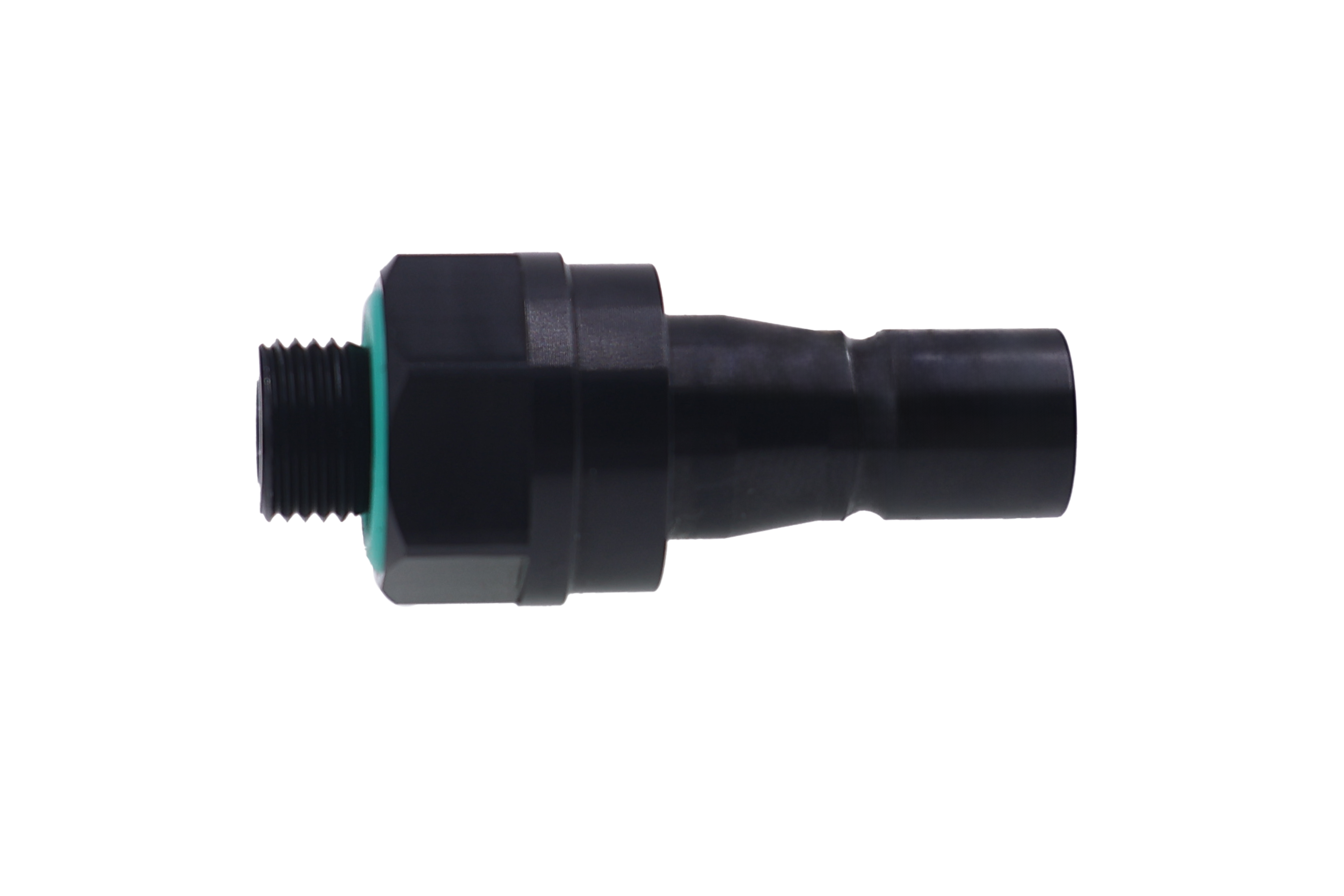

QDC05M-A511N
DN05
Male / plug side
AL6061 aluminum alloy

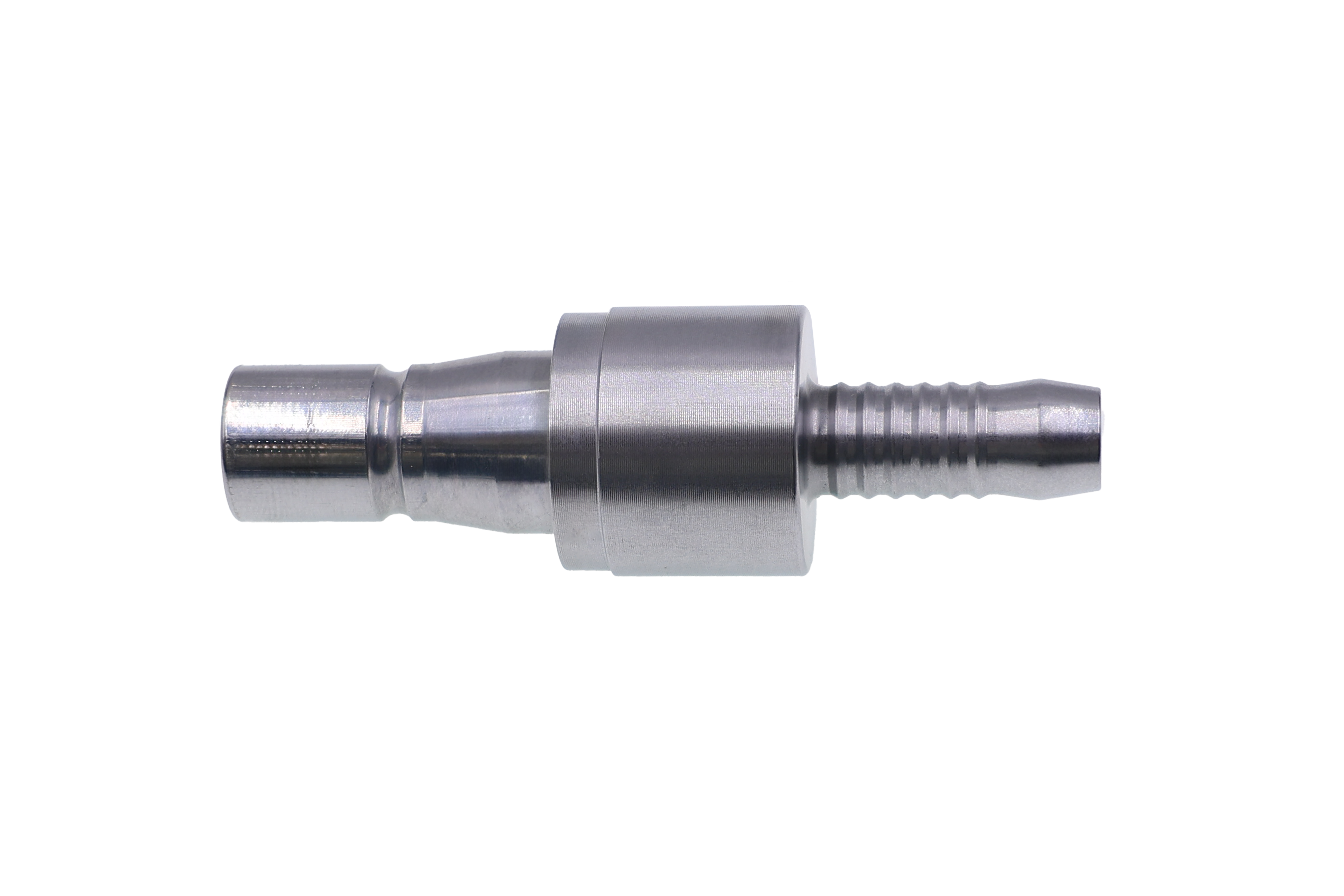

QDC05M-S021N
DN05
Male / plug side
304 / 316L stainless steel

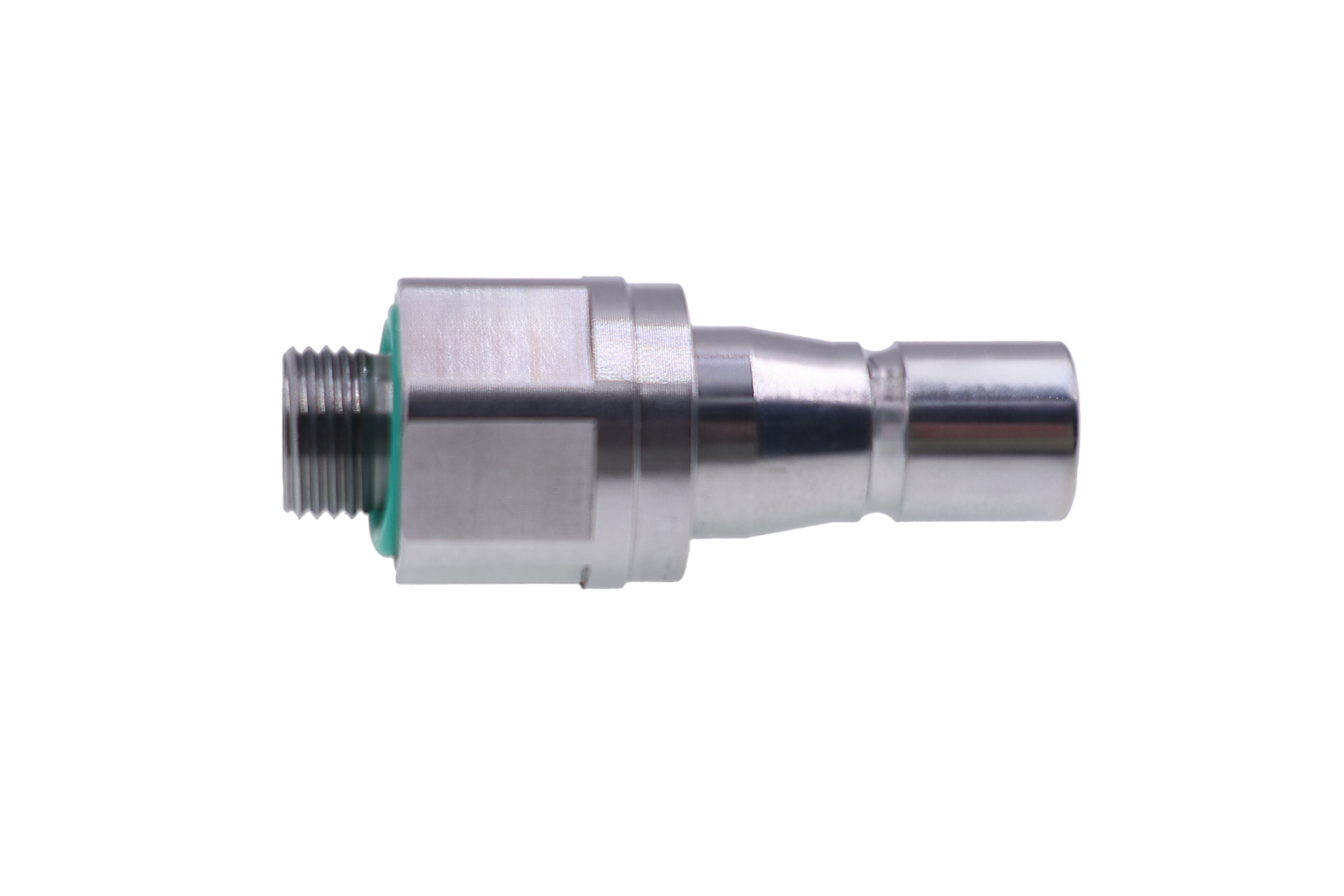

QDC05M-S511N
DN05
Male / plug side
304 / 316L stainless steel

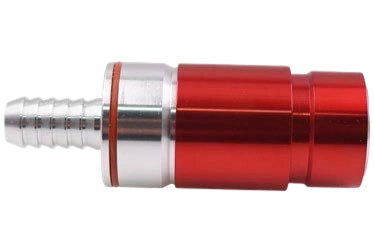

QDC09F-A041R
DN09
Female / socket side
AL6061 aluminum alloy

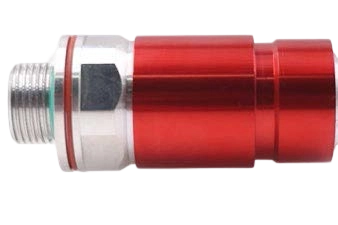

QDC09F-A541R
DN09
Female / socket side
AL6061 aluminum alloy

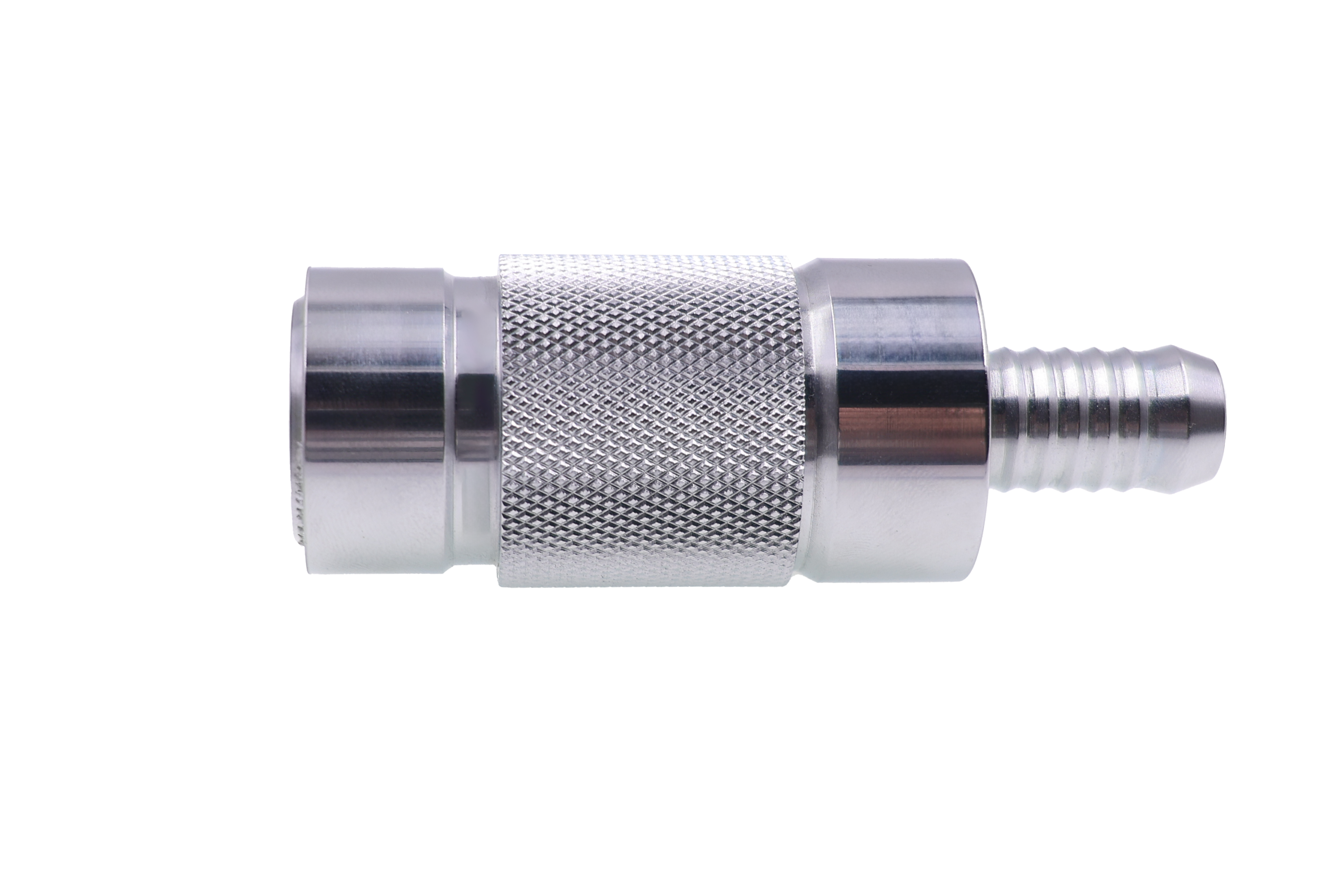

QDC09F-S041N
DN09
Female / socket side
304 / 316L stainless steel

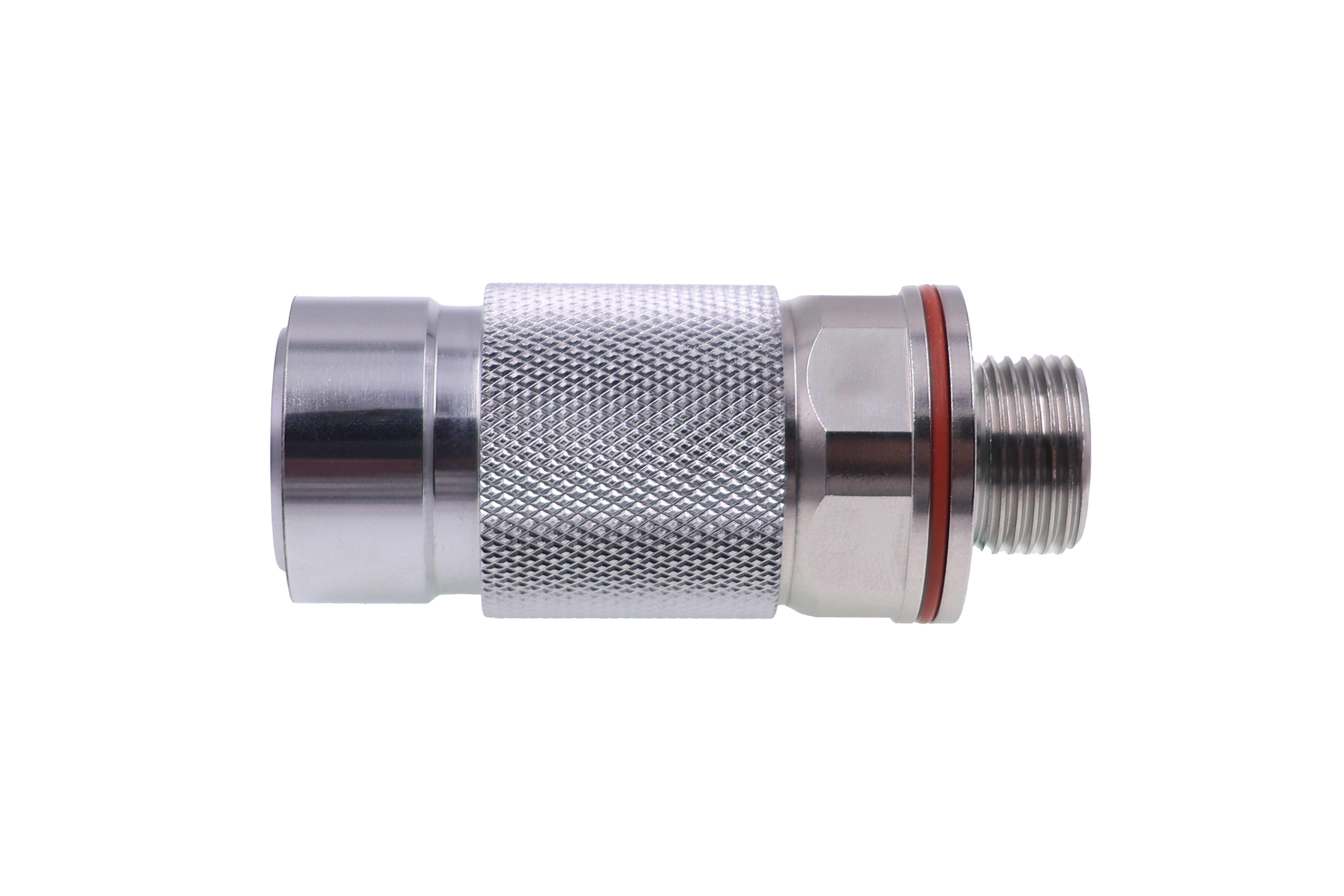

QDC09F-S541R
DN09
Female / socket side
304 / 316L stainless steel
QDC09M-A041R
DN09
Male / plug side
AL6061 aluminum alloy
QDC09M-A541R
DN09
Male / plug side
AL6061 aluminum alloy

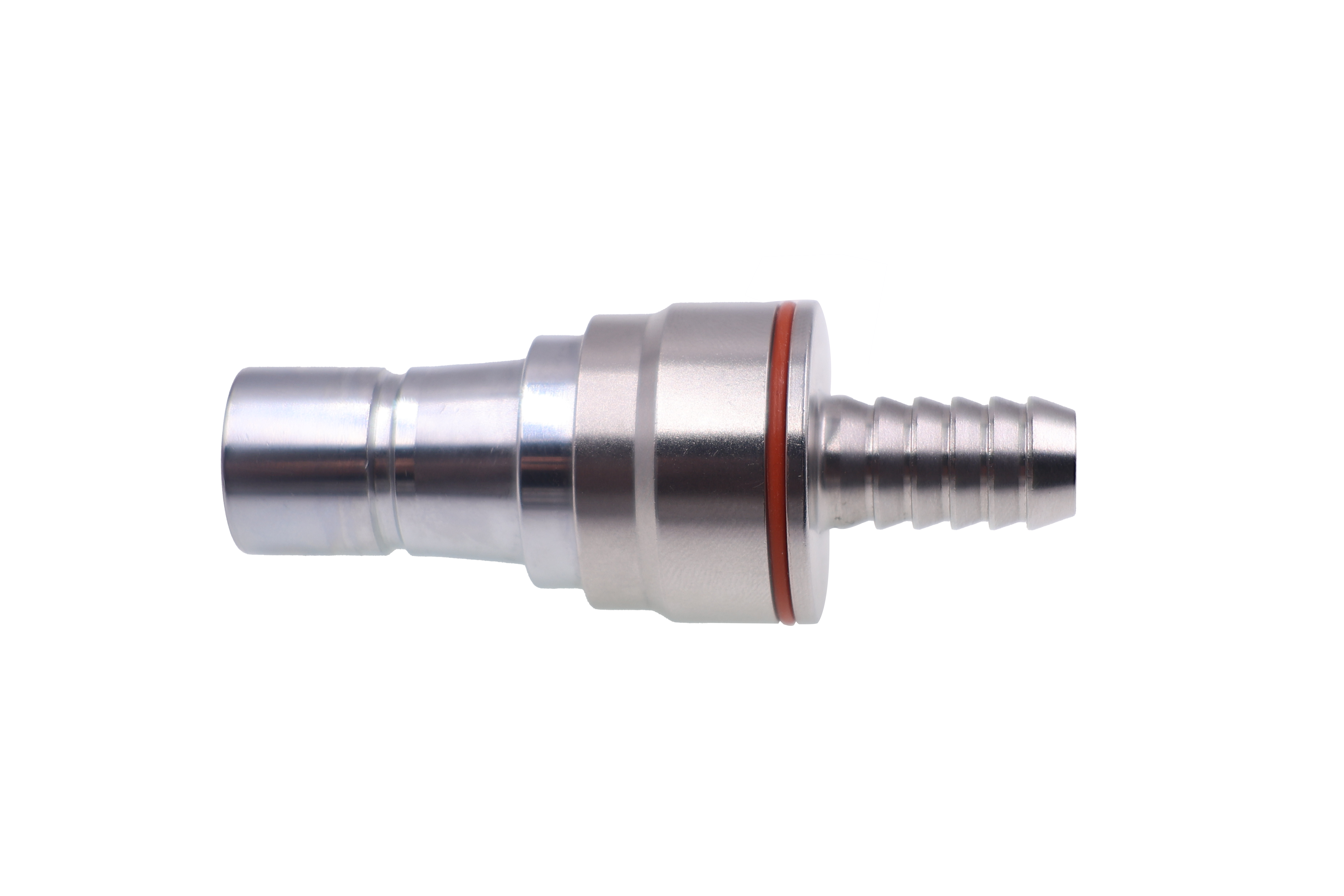

QDC09M-S041R
DN09
Male / plug side
304 / 316L stainless steel
QDC09M-S541R
DN09
Male / plug side
304 / 316L stainless steel

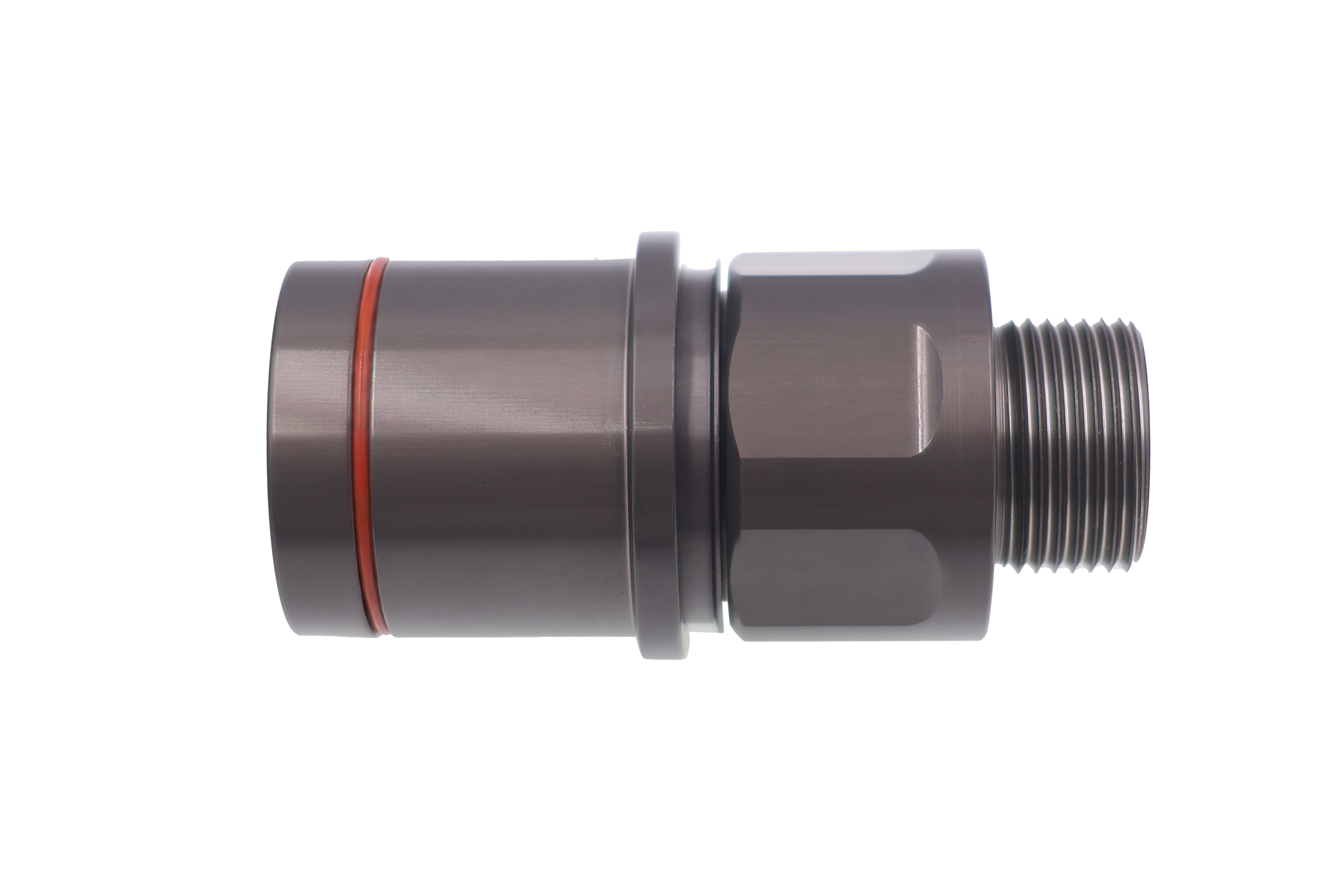

QDC12F-A741R
DN12
Female / socket side
AL6061 aluminum alloy

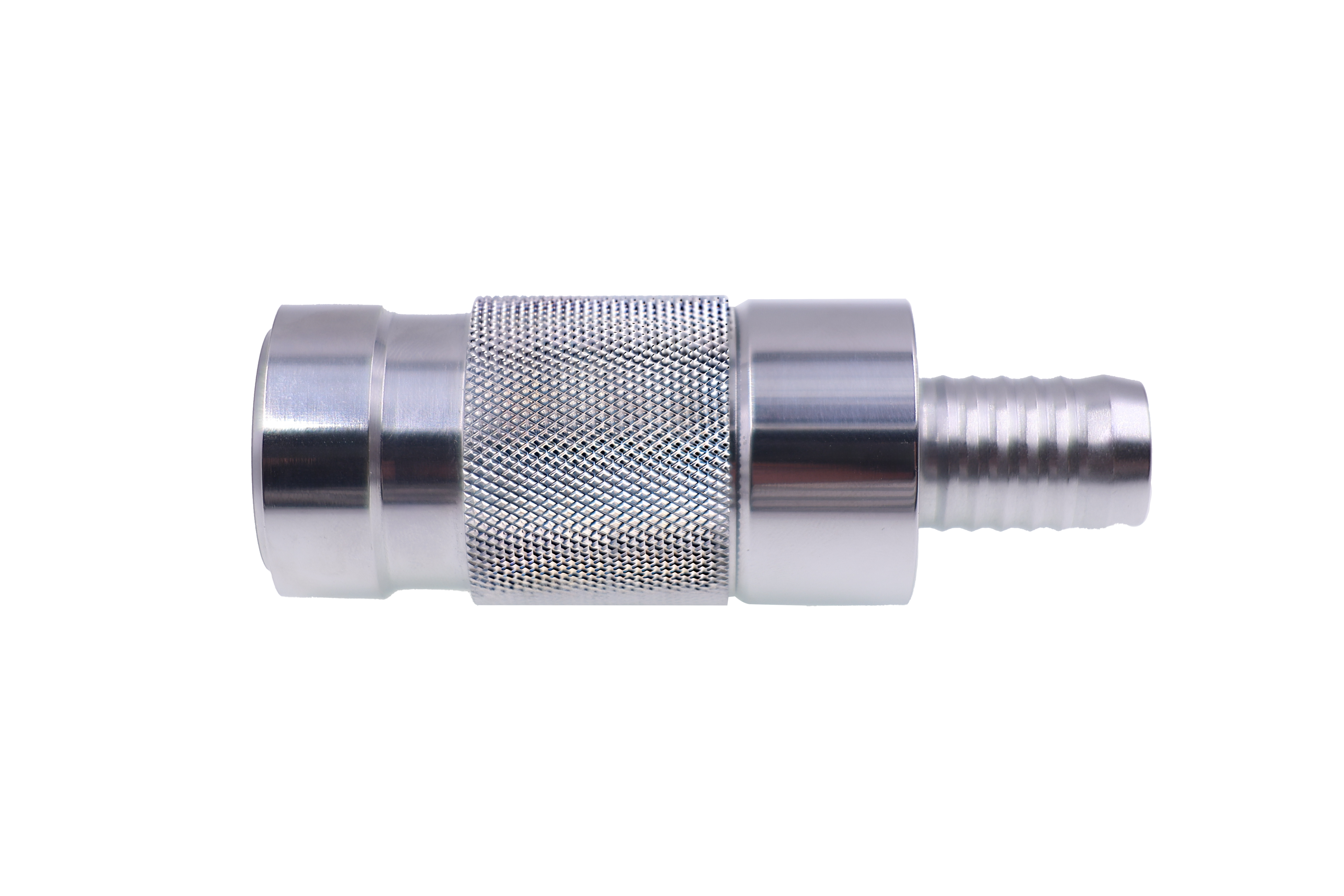

QDC12F-S061N
DN12
Female / socket side
304 / 316L stainless steel

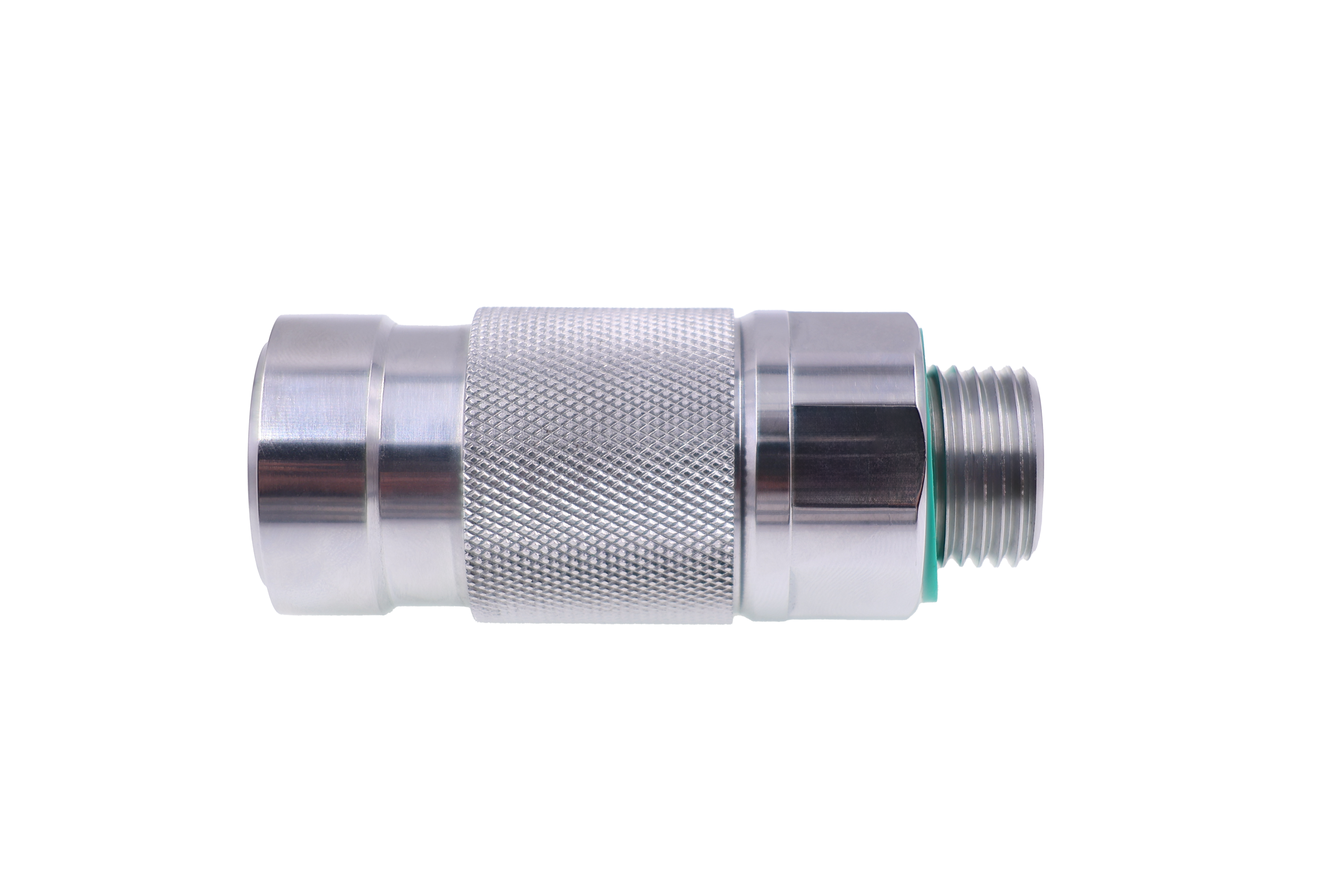

QDC12F-S551N
DN12
Female / socket side
304 / 316L stainless steel

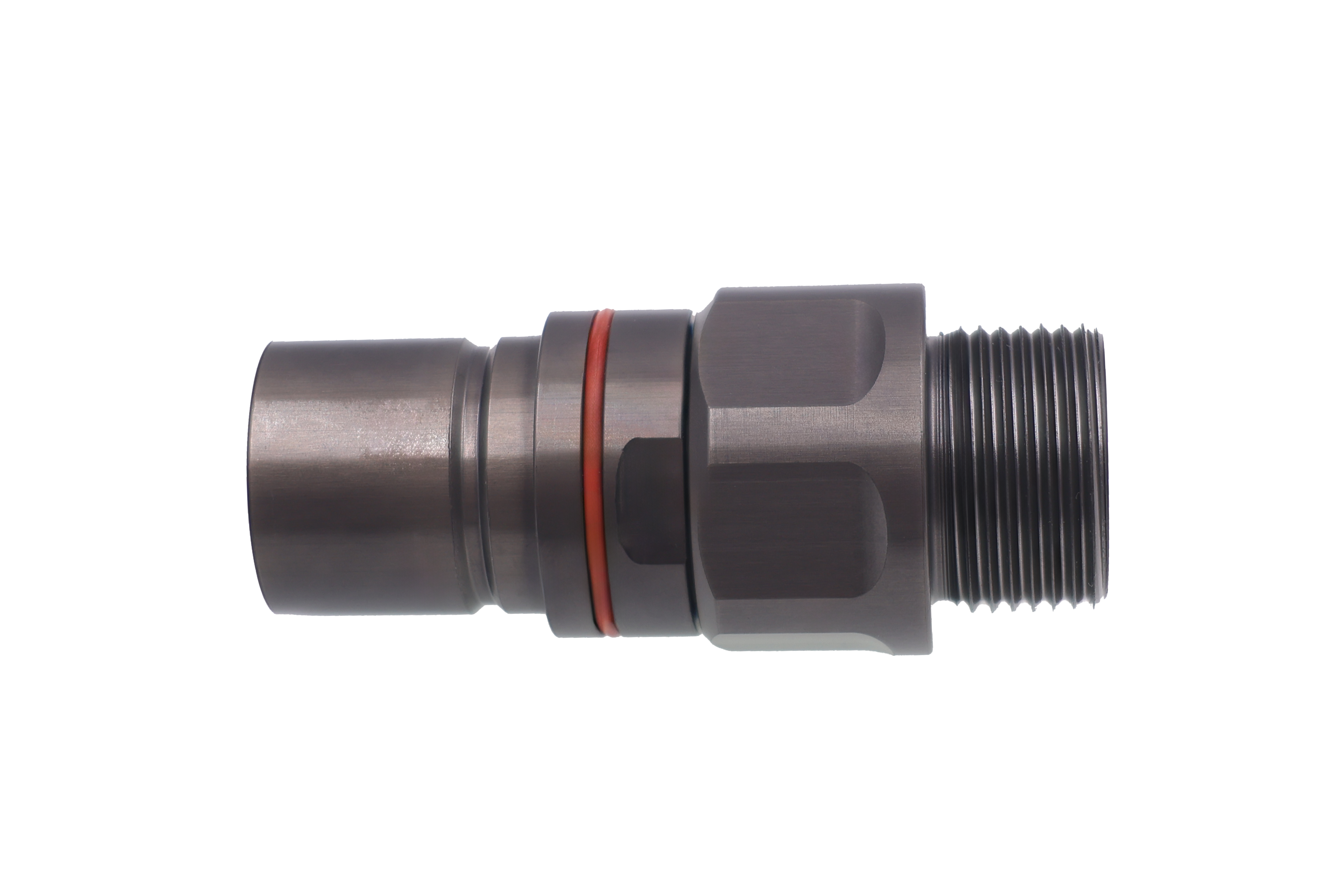

QDC12M-A741R
DN12
Male / plug side
AL6061 aluminum alloy

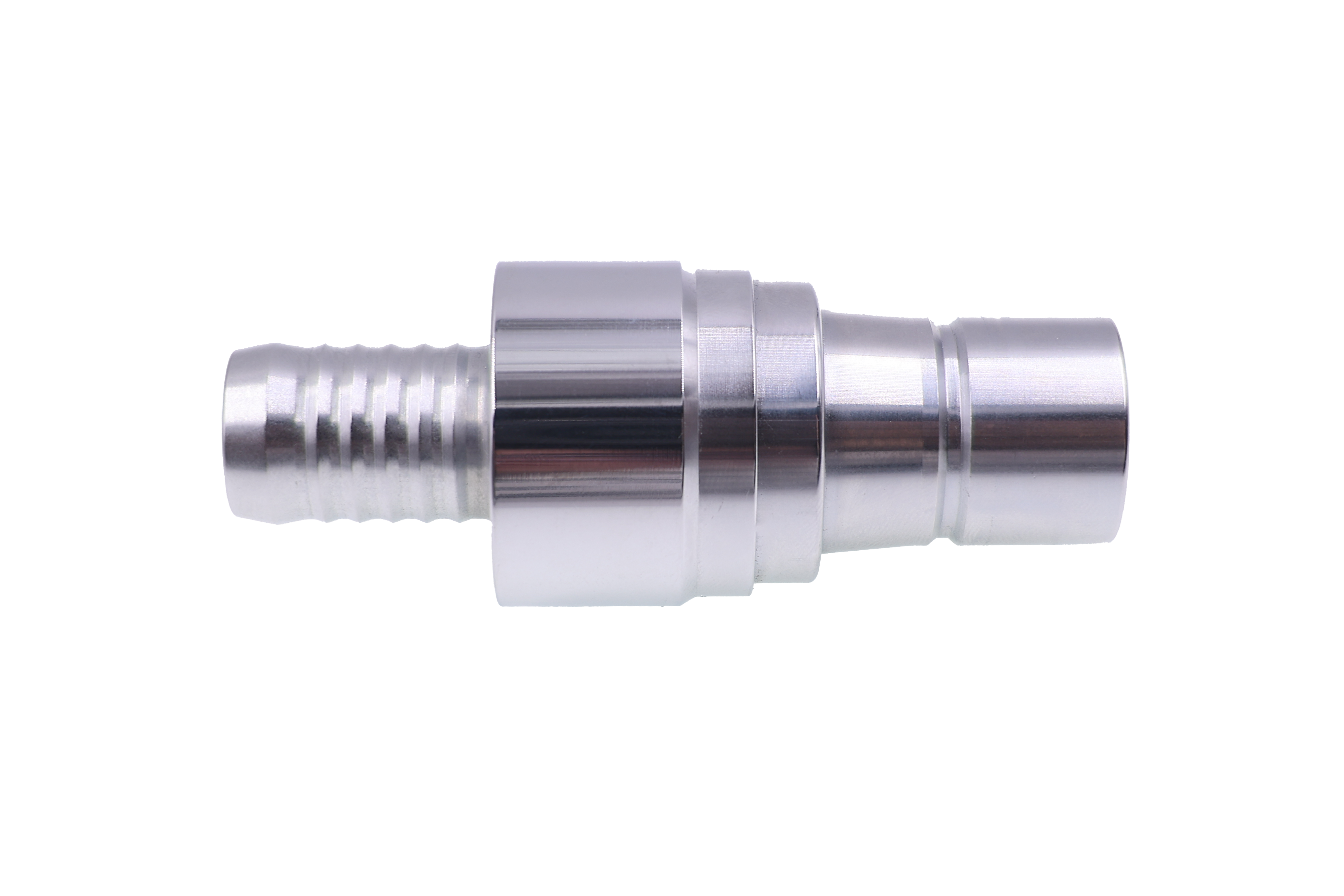

QDC12M-S061N
DN12
Male / plug side
304 / 316L stainless steel

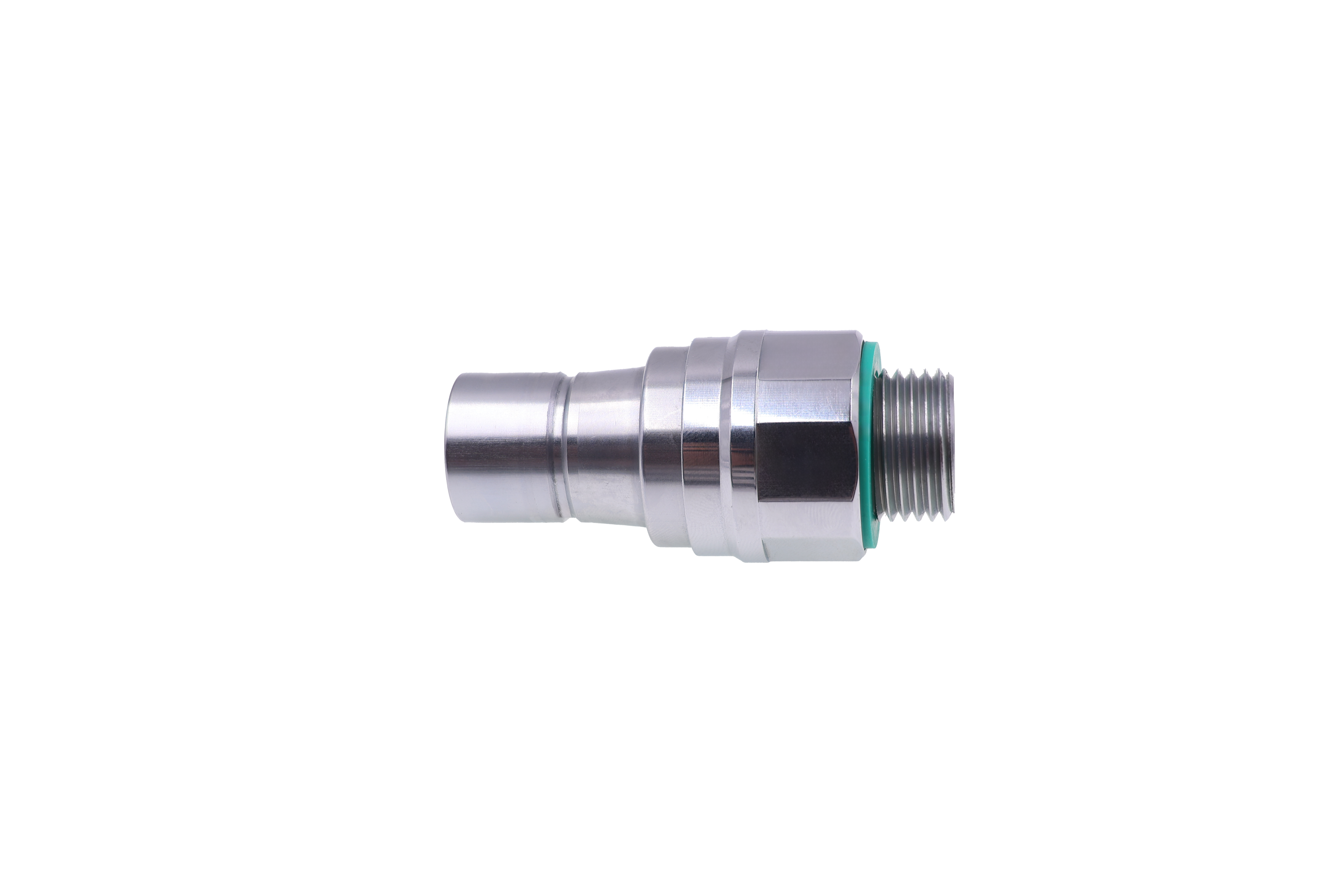

QDC12M-S551N
DN12
Male / plug side
304 / 316L stainless steel

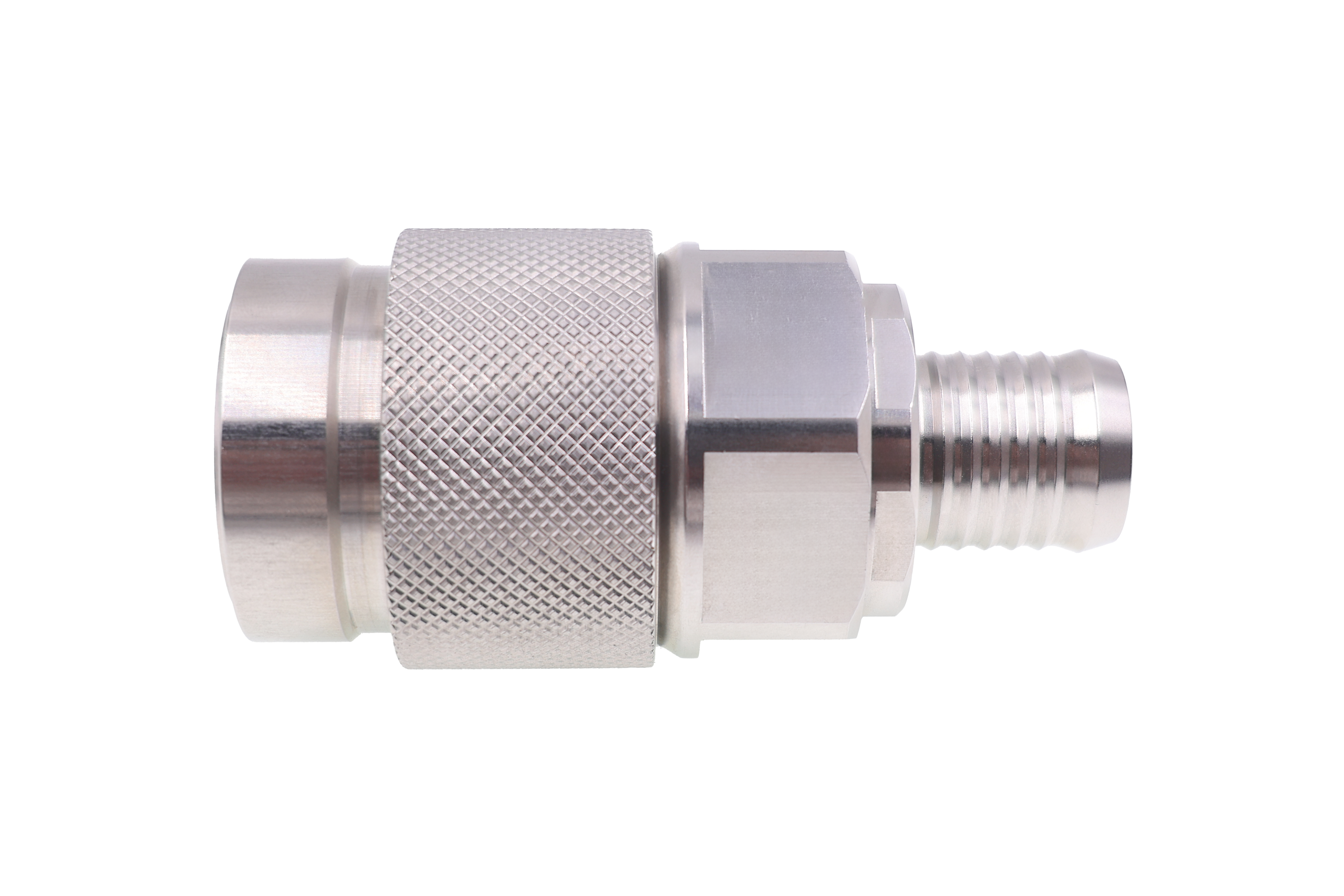

QDC16F-S091N
DN16
Female / socket side
304 / 316L stainless steel

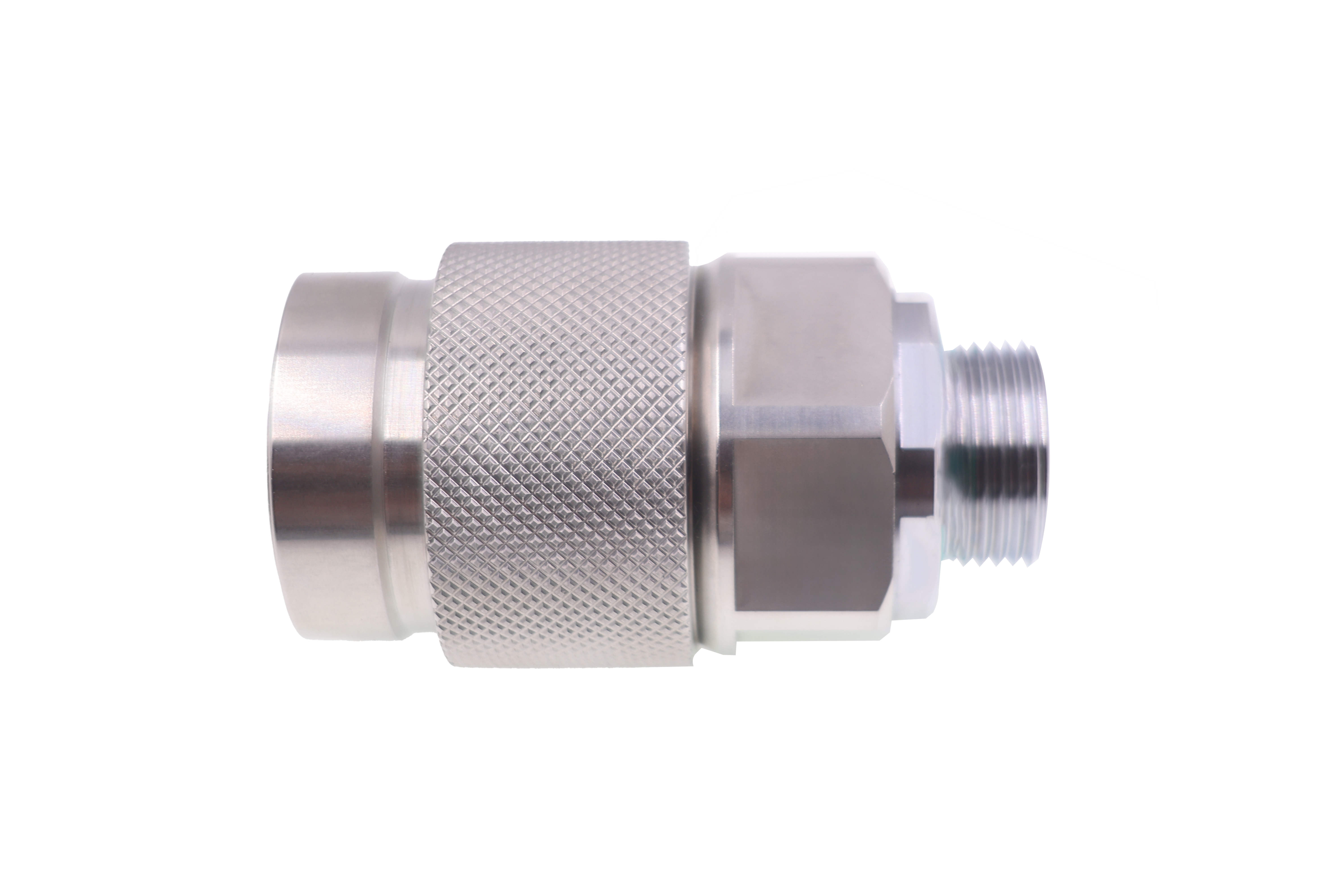

QDC16F-S581N
DN16
Female / socket side
304 / 316L stainless steel

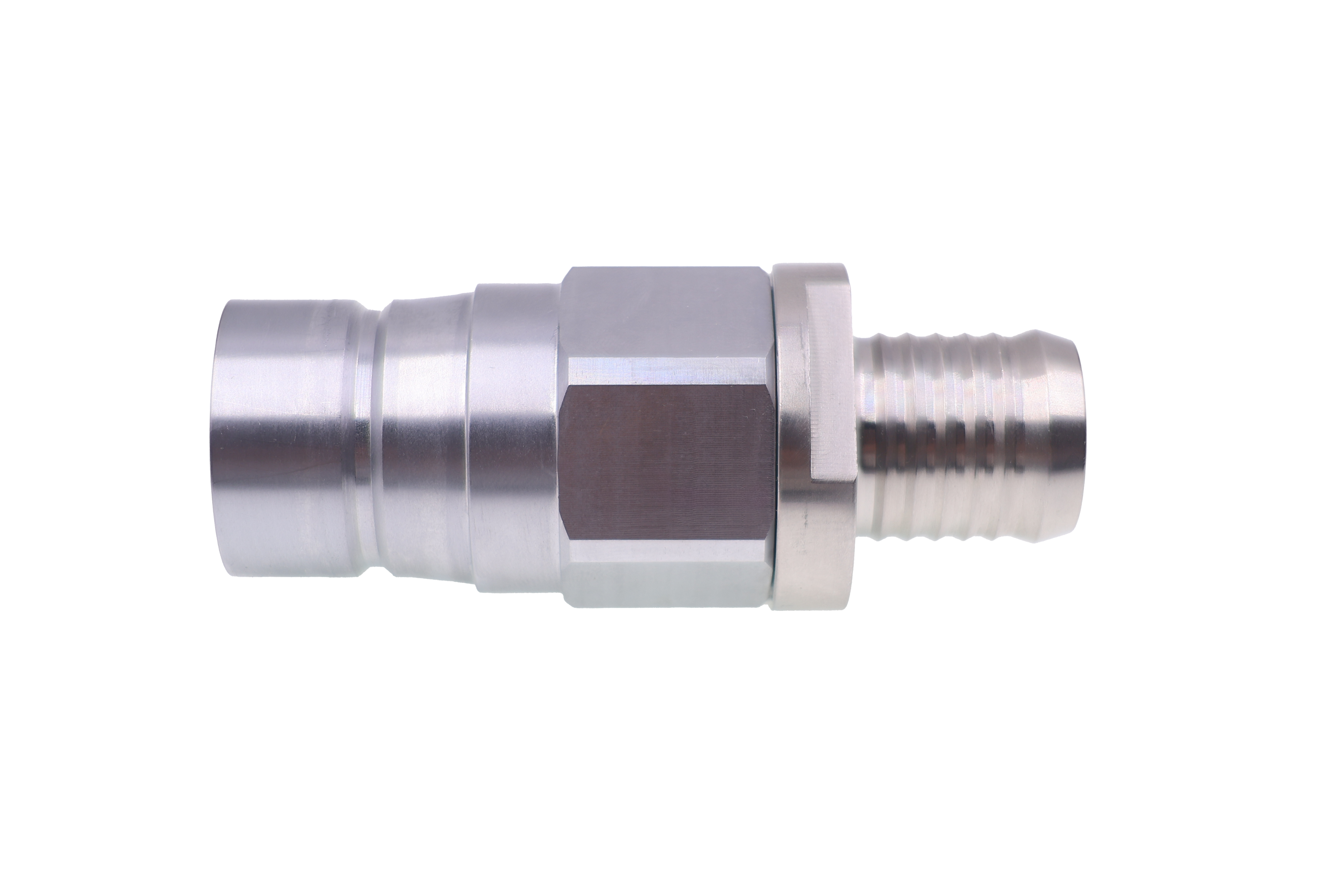

QDC16M-S091N
DN16
Male / plug side
304 / 316L stainless steel

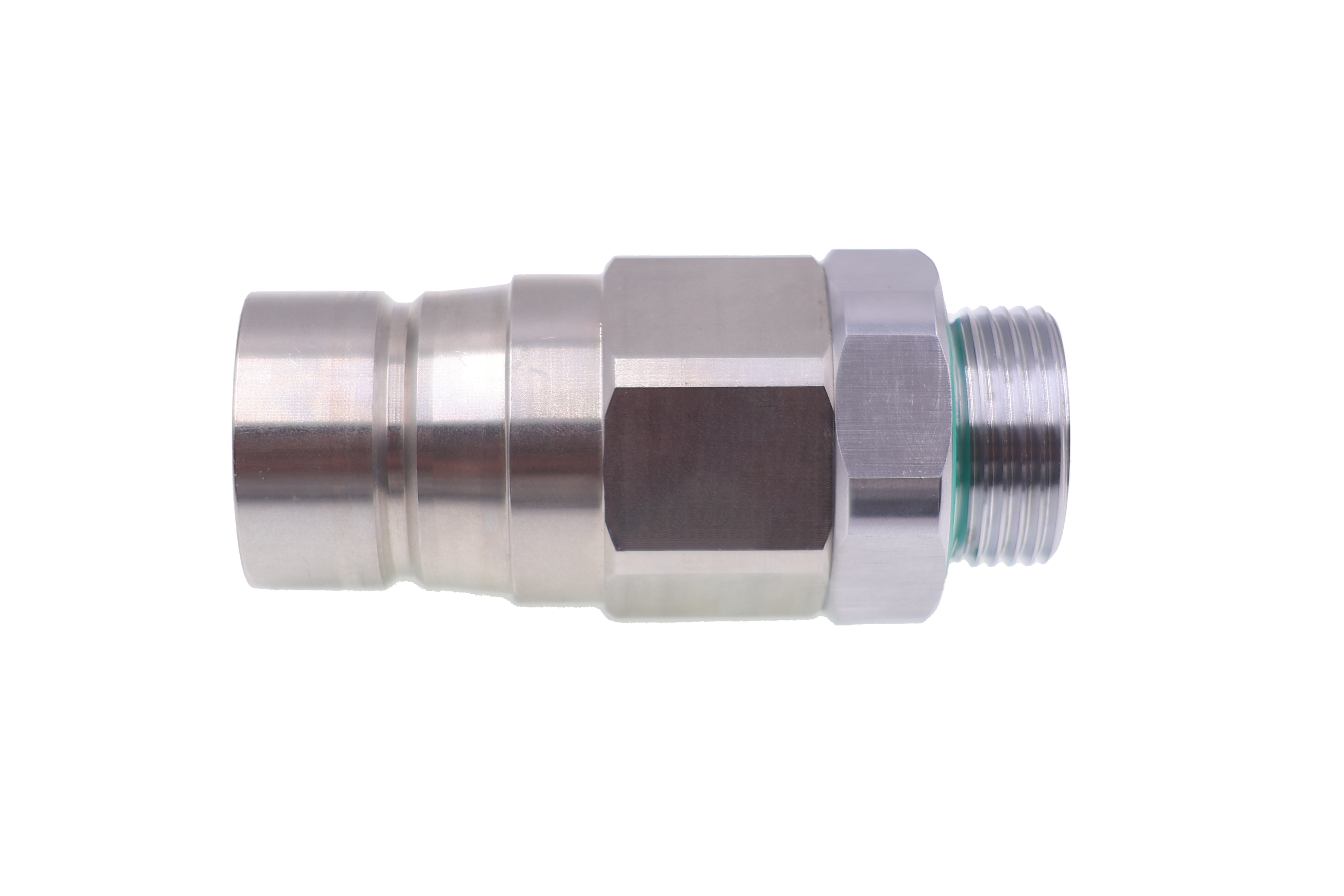

QDC16M-S581N
DN16
Male / plug side
304 / 316L stainless steel

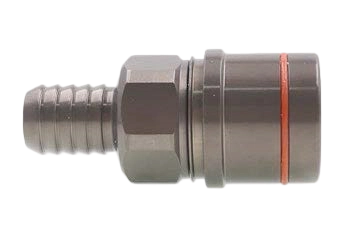

QDCL09F-A051R
DN09
Female / socket side
AL6061 aluminum alloy

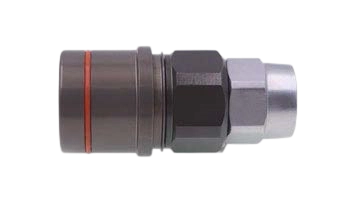

QDCL09F-A421R
DN09
Female / socket side
AL6061 aluminum alloy

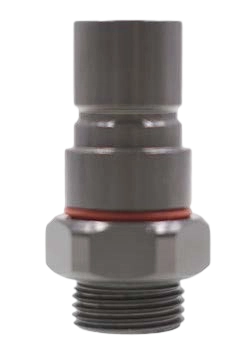

QDCL09M-A541R
DN09
Male / plug side
AL6061 aluminum alloy
Need a quick check for this series?
Send the closest model or drawing and the operating conditions. Panduola Tech can help check available options without overpromising interchangeability.
Contact Panduola TechCurrent model number or drawing
Application and installation space
Fluid and concentration
Working pressure and temperature range
Required body material and seal material
Prototype quantity or batch quantity
