FQB09F-S541R
DN09
Female / socket side
304 / 316L stainless steel
Back to products
FQB Blind-Mate Series
FQB Blind-Mate Quick Disconnects
Floating blind-mate quick couplings for liquid cooling systems where alignment tolerance matters.
Series specifications
- Nominal diameters
- DN09
- Body material
- 304 / 316L stainless steel
- Seal material
- EPDM standard; FVMQ low-temperature option
- Working pressure
- 10 bar
- Burst pressure
- 20 bar
- Temperature range
- -20°C to 150°C
Compatible fluids
Deionized water, Purified water, Ethylene glycol, Propylene glycol.
Model Reference
Available model images
Use these as a starting point. Final dimensions, drawings, and replacement compatibility should be confirmed before ordering.

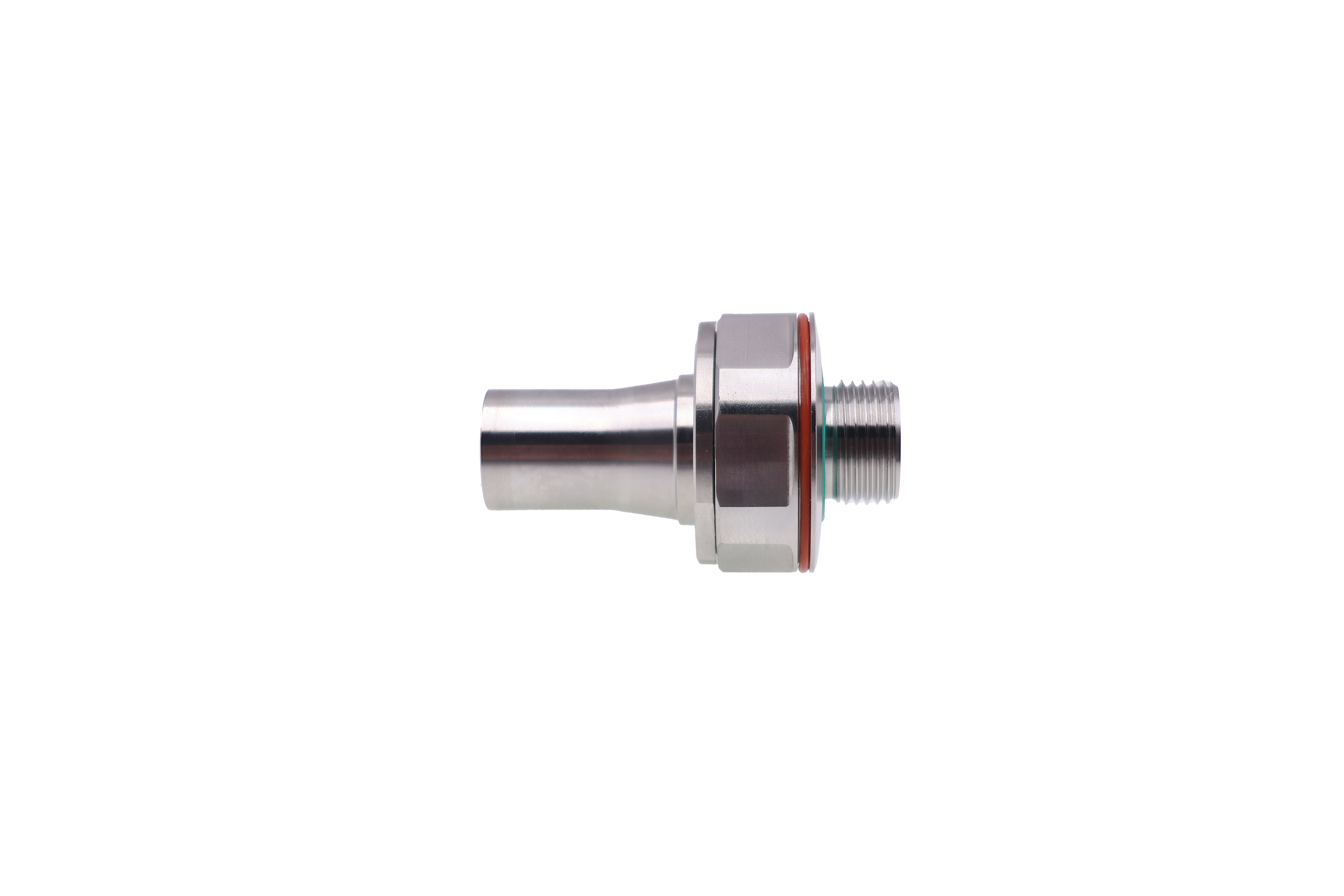

FQB09M-S541R
DN09
Male / plug side
304 / 316L stainless steel
Need a quick check for this series?
Send the closest model or drawing and the operating conditions. Panduola Tech can help check available options without overpromising interchangeability.
Contact Panduola TechCurrent model number or drawing
Application and installation space
Fluid and concentration
Working pressure and temperature range
Required body material and seal material
Prototype quantity or batch quantity
